Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/hz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | Ultrasonic Transducer Impedance Analyzer,Ultrasonic Frequency Measuring Instrument |
||
Deacription:

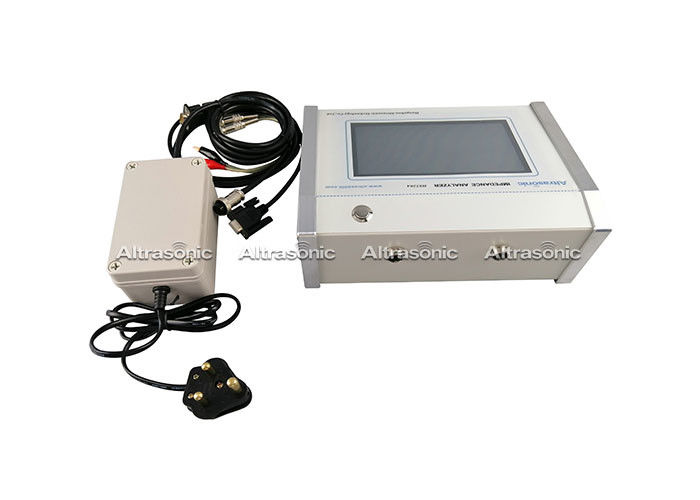

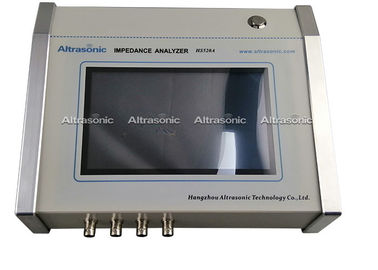

Ultrasonic impedance detector, also known as ultrasonic frequency measuring instrument, ultrasonic transducer parameter analyzer, ultrasonic transducer impedance tester, ultrasonic performance analyzer, the instrument consists of hardware and software. It was widely used in the detection of piezoelectric ultrasonic devices and equipment of integrated solutions.
Specification:
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Size | 24*19*10cm |
| Test environment temperature | 10～40℃ |
| Frequency Step | 0.1Hz～Any |
Application:
This is characteristic of analyzer measurement and evaluation of piezoelectric ceramics, piezoelectric transducer, ultrasonic cleaning machine, ultrasonic welding machine, ultrasonic grinder, ultrasonic machining equioment and other deivces, like transducer, booster, horn, the device parameters and performance.
Transducer impedance tester is characterized by easy to use, the combination of indicators and graphics , accurate parameters.
