Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/hz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | Ceramic Horn Impedance Tester,Ultrasonic Impedance Analyzer,Ceramic Horn Impedance Analyzer |
||
Description

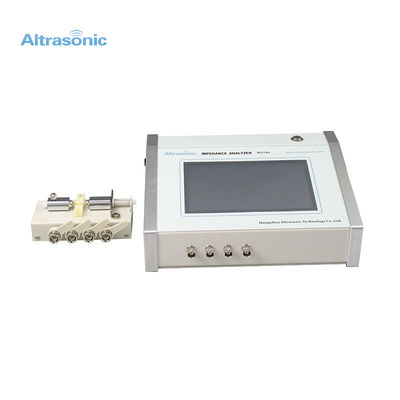

Portable impedance analyzer is mainly used to measure the performance of ultrasonic transducers, ultrasonic horn Rod (unit), piezoelectric ceramics and high-frequency devices. It is one of the most convenient tools for impedance scanning and characteristic analysis of ultrasonic equipment. Wherever you go, you can quickly and conveniently test the parameters and characteristics of the devices and share them remotely.
Specification
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Frequency Step | 0.1Hz～Any |
Application
1. Medical ultrasound
2. Ultrasonic cleaning
3. Ultrasonic welding
4. Power ultrasound equipment
5. Piezoelectric ceramic production inspection
