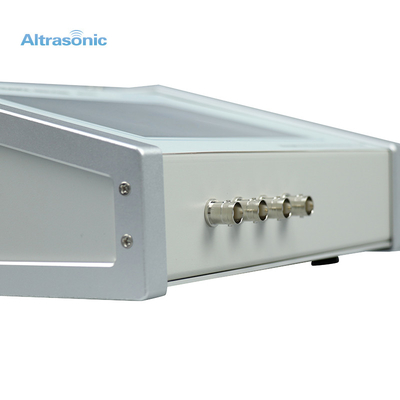

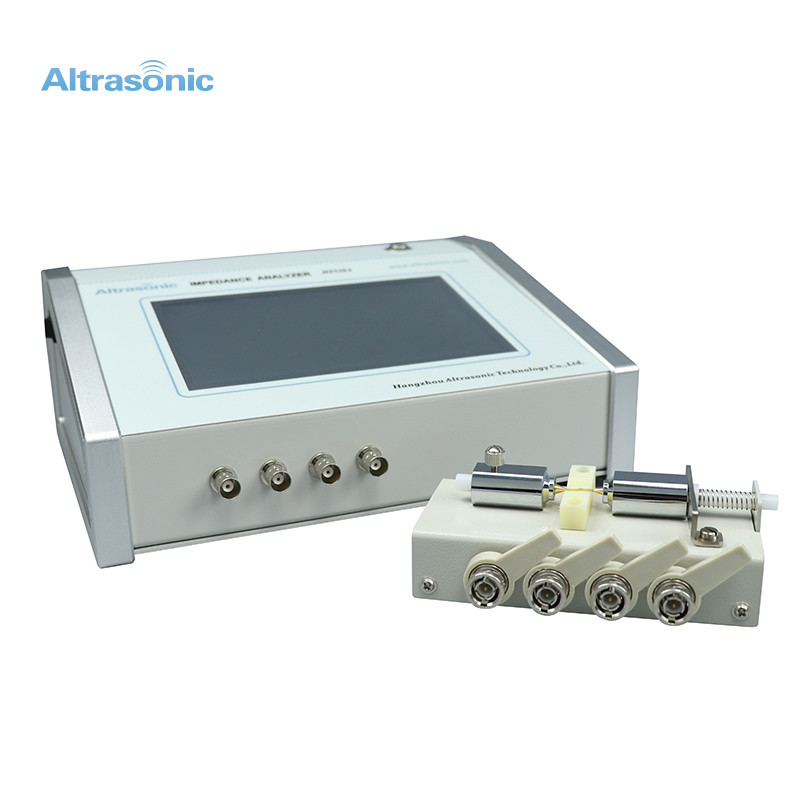

Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/hz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | Ultrasonic Frequency Impedance Graphic Analyzer,1mhz Max Graphic Analyzer,Ceramic Graphic Analyzer |
||
Characteristics of ultrasonic impedance analyzer:
1. High precision of impedance measurement, accurate to 0.1Hz
2. It is easy to judge defects by admittance circle and logarithmic curve
3. The test results completely distinguish the vibration point and the half power point
4. Test data computer can store and print infinitely and trace data source
5. Automatic filtering and statistics, parameter filtering can be set
6. High efficiency and simple operation
7. It is simple, easy to use, the combination of indicators and graphics, accurate parameters, low price and strong guidance for production.
