Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting

Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting
Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting
Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting

Large Image :  Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Delivery Time: 7 workdays
Payment Terms: T/T, Western Unionm,paypal

Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting

Description
Frequency: 30kHz Power: 500 Watt
Power Supply: Ultrasonic Digital Generator Cutting Thickness: 1-7mm
Voltage: 220V / 110V Name: Ultrasonic Fabric Cutting Machine
Model: HS-C30 Certificate: CE
Warratny: 1 Year Aftersales Service: Online Service
High Light:

500 Watt Ultrasonic Fabric Cutter

,

Titanium Alloy Ultrasonic Fabric Cutter

,

Blade Replaceable Portable Ultrasonic Cutter

Hand Portable 30kHz Ultrasonic Cutting Machine For Fabric Cutting

Description:



Cutting tool in doing ultrasonic vibration, friction resistance is particularly small, cut material is not easy to adhere to the blade. The cutting effect of frozen, viscous and elastic materials is obvious. Especially effective for cutting foods, rubber, or objects that do not add pressure. At the same time of cutting, the cutting part has fusion effect. The cutting area is perfectly hemmed to prevent loose organization of the cut material (such as flash of textile material). The use of ultrasonic cutting machine can also be expanded, such as digging holes, shovel digging, scraping paint, carving, cutting and so on.

Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting 0

Specification:



Model HSPC30
Frequency 30KHZ
Output Power 500W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

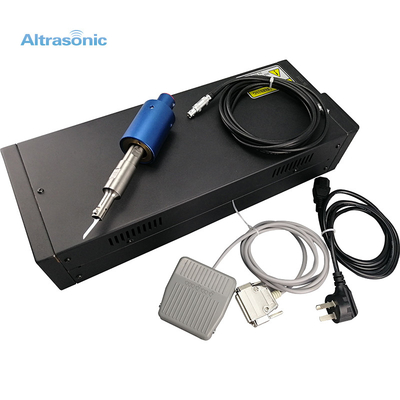

Accessory Foot switch1pc;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter Magnalium alloy, titanium alloy, stainless steel



Competitive Advantages:


1. The use of high power ultrasonic transducer vibrating element, ensure the long time stable working
2. The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
3. Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost
4. Suitable for any occasion, safe, harmless and easy to operate;
5. Suitable for cutting a variety of plastic materials, can cut any shape;
6. No rough edges, neat and beautiful incision



Applications:



Ultrasonic Cutters can cut difficult-to-cut materials

♦ Carbon

♦ Prepreg materials

♦ Rubber

♦ Thermoplastics

♦ Leather

♦ Cloth

♦ Nonwoven fabric

♦ Paper

♦ Plastic sheet







Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting 1Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting 2Portable 30kHz Ultrasonic Cutting Machine 500 Watt For Fabric Cutting 3
