Product Details:
|
| Product Name: | Ultrasonic Converter | Frequency: | 20 Khz |
|---|---|---|---|
| Ceramic Diameter: | 50 Mm | Joint Bolt: | 1/2-20 UNF |
| Power: | 1500W | Application: | Welding Machine |
| Amplitude: | 20 Um | Ceramic Disc: | 4 Pcs Or 6pcs |
| Material: | Titanium, Aluminum Materials Optional | Protective Housing: | Aluminum And Stainless Steel Optional |
| Highlight: | Branson 803 Ultrasonic Power Transducer,Branson 803 Ultrasonic Oscillator,1500W Ultrasonic Power Transducer |
||

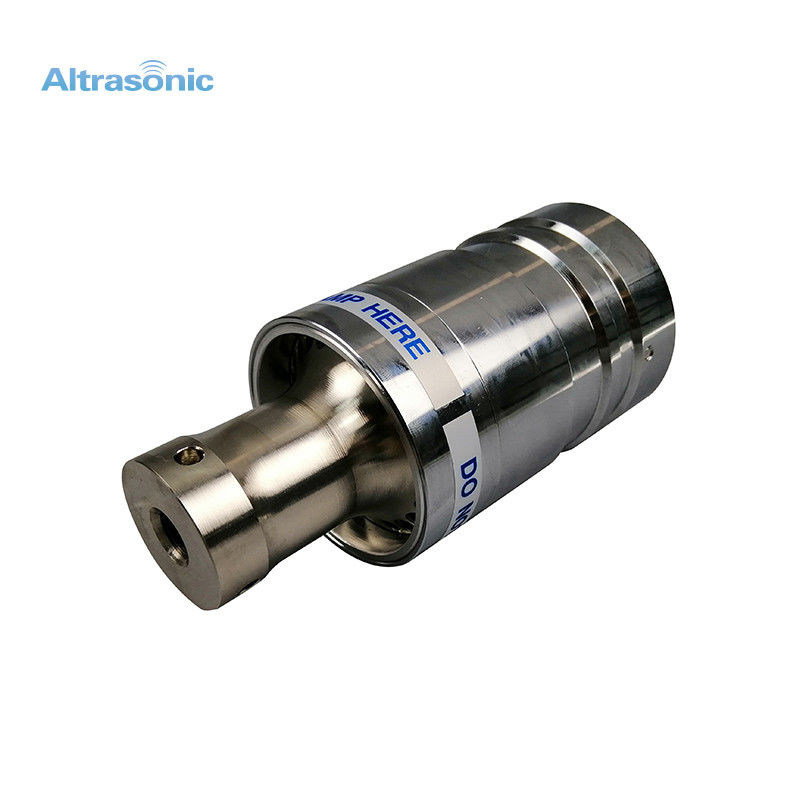

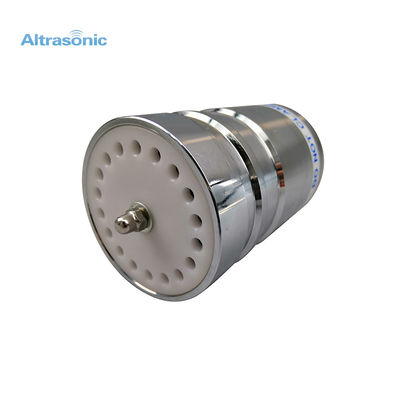

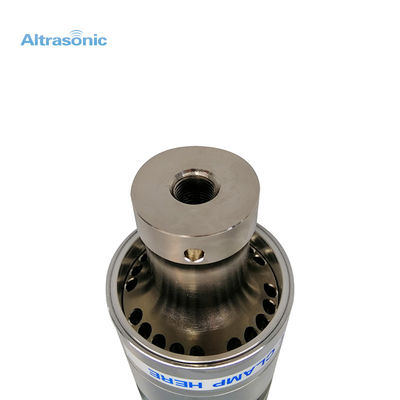

20kHz Ultrasonic Power Transducer Replacement Branson803 Ultrasonic Oscillator
Specifications:
| Model | HSB803 |
| Frequency | 20 khz |
| Output power | 1500 watt |
| Joint bolt | 1/2-20unf |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs or 6pcs |
| Capacitance | 11.5 - 12.5 nf |
| Amplitude | 20 um |
| Application | welding machine |
Description:
The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.
Competitive Advantage:
All-new made in China
Meets or exceeds all Branson specifications
Directly replaces Branson803
Certified materials
Made in ISO-9002 registered facility
Large amplitude and long service life.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
