Product Details:
|
| Product Name: | Ultrasonic Converter | Frequency: | 20 Khz |
|---|---|---|---|
| Ceramic Diameter: | 50 Mm | Joint Bolt: | 1/2-20 UNF |
| Power: | 1500W | Application: | Welding Machine |
| Amplitude: | 20 Um | Ceramic Disc: | 4 Pcs Or 6pcs |
| Material: | Titanium, Aluminum Materials Optional | Protective Housing: | Aluminum And Stainless Steel Optional |
| High Light: | Plastic 20kHz Ultrasonic Transducer,Branson 803 Ultrasonic Transducer,1500W Ultrasonic Transducer 20kHz |
||

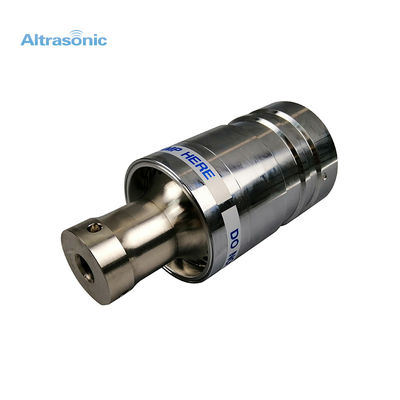

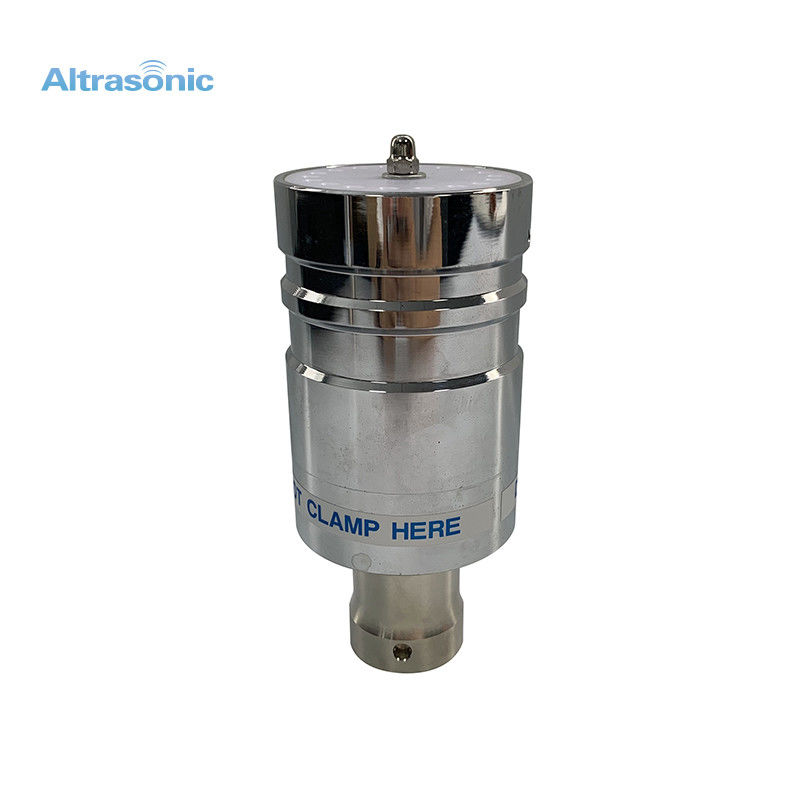

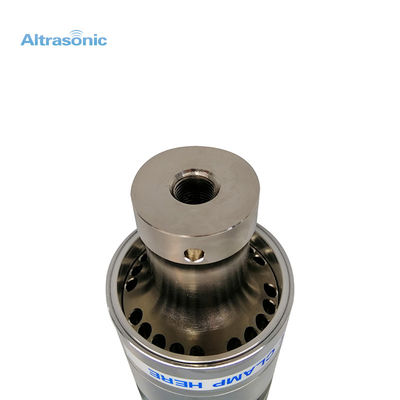

20kHz Replacement Branson803 transducer Ultrasonic Plastic Converter
Specifications:
| Model | HSB803 |
| Frequency | 20 khz |
| Output power | 1500 watt |
| Joint bolt | 1/2-20unf |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs or 6pcs |
| Capacitance | 11.5 - 12.5 nf |
| Amplitude | 20 um |
| Application | welding machine |
Description:
The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.
Product features
All-new made in China
Meets or exceeds all Branson specifications
Directly replaces Branson803
Certified materials
Made in ISO-9002 registered facility
Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be
replaced (one time).
Competitive Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
