40kHz Ultrasonic Welding Converter For Replacement Branson 4TH Transducer

Large Image : 40kHz Ultrasonic Welding Converter For Replacement Branson 4TH Transducer

Product Details:

Place of Origin:	China
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-B4TH

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	10,000 units per month

Contact Now

40kHz Ultrasonic Welding Converter For Replacement Branson 4TH Transducer

Description

Product Name:	Ultrasonic Converter	Frequency:	40 Khz
Ceramic Diameter:	25 Mm	Capacitance:	4.5 -5.3 Nf
Power:	500 Watt	Application:	Welding Machine
Amplitude:	6 Um	Ceramic Disc:	4 Pcs
Material:	Titanium, Aluminum Materials Optional	Protective Housing:	Aluminum And Stainless Steel Optional
Highlight:	40kHz Ultrasonic Welding Converter , Branson 4TH Ultrasonic Welding Converter , Titanium Ultrasonic Welding Converter

40kHz Ultrasound Welding Converter For Replacement Branson 4TH Transducer

Specifications:

Model	HSB4TH
Frequency	40 khz
Output power	500 watt
Joint bolt	M8
Ceramic disc Diameter	25 mm
Quantity of Ceramic discs	4 pcs
Capacitance	4.5 -5.3 nf
Amplitude	6 um
Application	welding machine

Description:

The Replacement Converter for Branson 4TH Direct replacement for the Branson 4TH that delivers lower cost, rugged quality and superior value.

Competitive Advantages:

1. High efficiency.

2. High-quality materials are matched with selected materials, perfect resonance image.

3. Large amplitude and long service life.

4. Stable design can protect sensitive ultrasonic components.

5. The design of 4 piezoelectric disks can achieve the maximum output amplitude.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

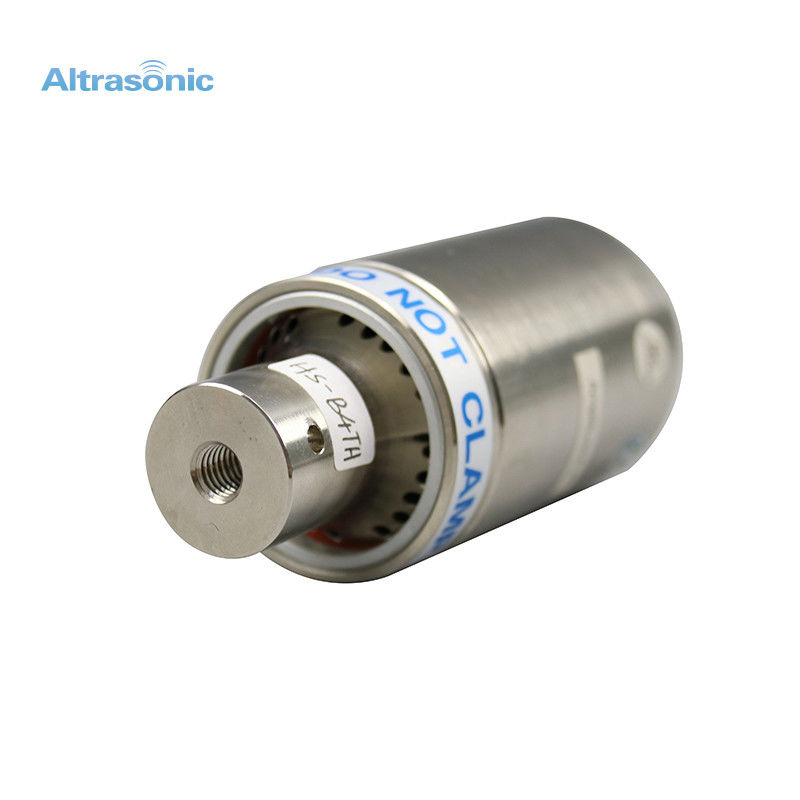

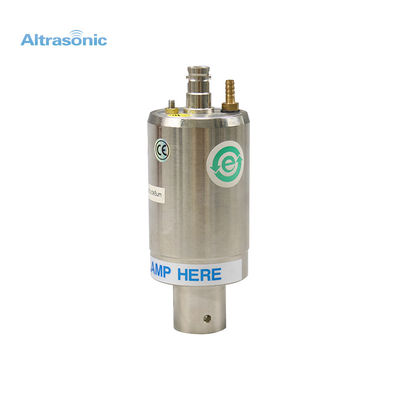

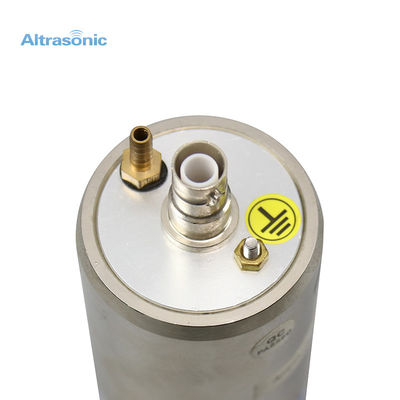

Product display

40kHz Ultrasonic Welding Converter For Replacement Branson 4TH Transducer 0
