Product Details:
|
| Product Name: | Ultrasonic Converter | Frequency: | 20Khz |
|---|---|---|---|
| Ceramic Diameter: | 50 Mm | Capacitance: | 19-21 Nf |
| Power: | 3300W | Application: | Plastic Welding Machine |
| Ceramic Disc: | 6 Pcs | Material: | Titanium, Aluminum Materials Optional |
| Protective Outer Cover: | Aluminum And Stainless Steel Optional | Delivery Time: | 7workdays |
| Highlight: | Plastic Welding 20Khz Ultrasonic Transducer,Branson CJ20 20Khz Ultrasonic Transducer,Ultrasonic Welding Transducer Titanium |
||

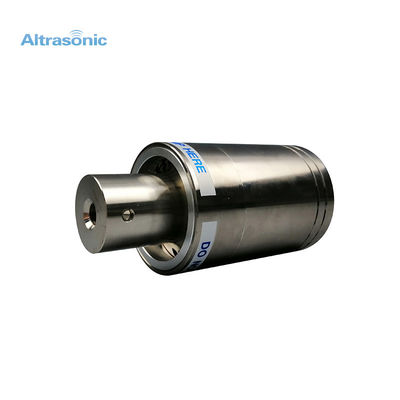

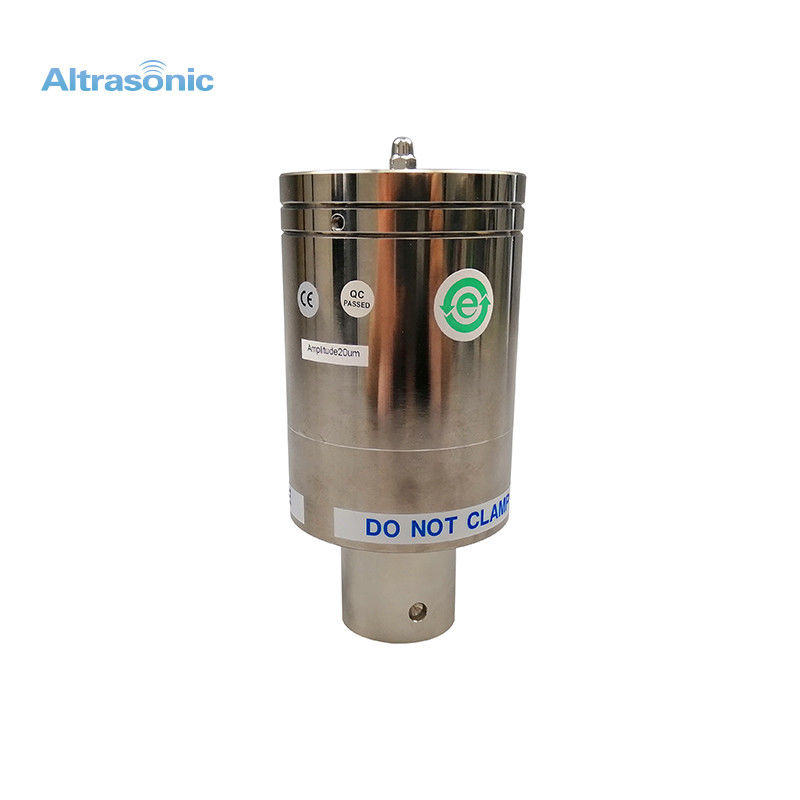

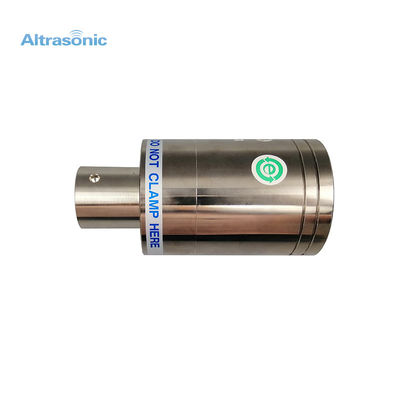

20Khz Ultrasonic Welding Transducer 3300 Watt For Branson CJ20 Transducer
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
for use with all 20KHz 2000 and 2000X actuator and IW systems.
Competitive Advantage:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
