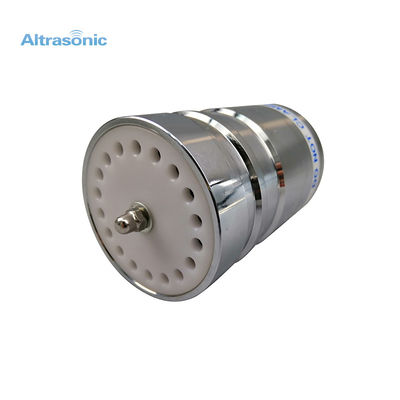

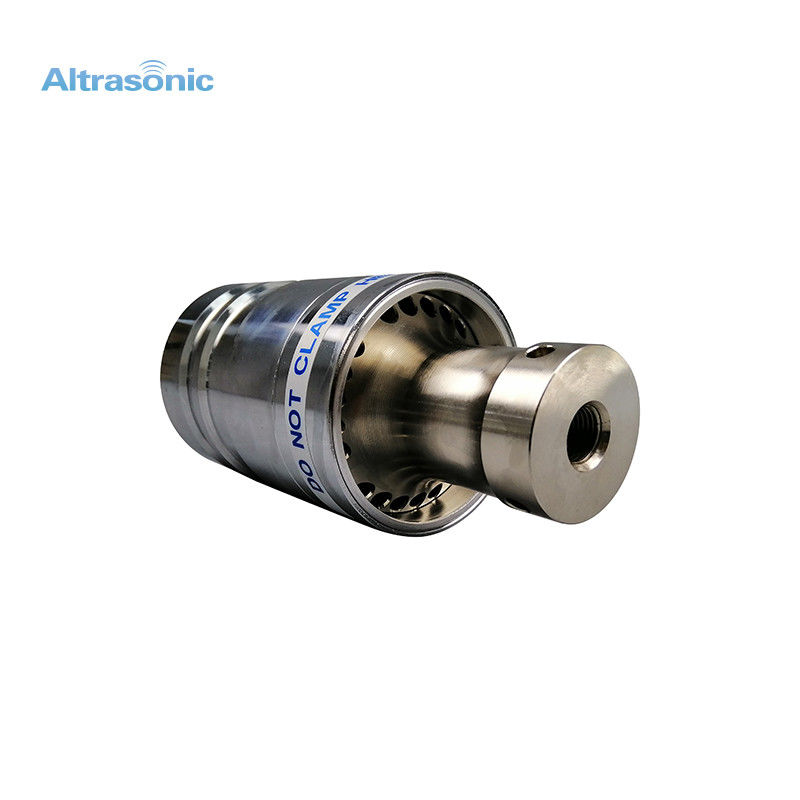

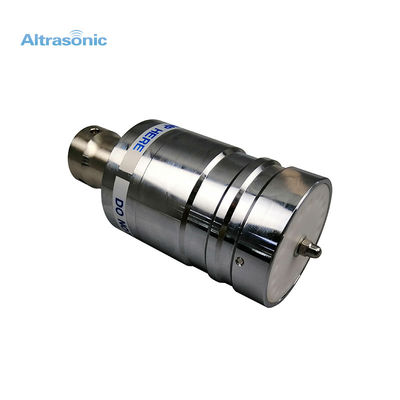

Aluminum 1500W Ultrasonic Welding Transducer For Branson 803 Converter

Large Image : Aluminum 1500W Ultrasonic Welding Transducer For Branson 803 Converter

Product Details:

Place of Origin:	CHINA
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HSD110-3122

Payment & Shipping Terms:

Minimum Order Quantity:	2 units
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000 units per month

Contact Now

Aluminum 1500W Ultrasonic Welding Transducer For Branson 803 Converter

Description

Product Name:	Ultrasonic Converter	Frequency:	20Khz
Ceramic Diameter:	50 Mm	Capacitance:	11.5 - 12.5 Nf
Power:	1500W	Application:	Plastic Welding Machine
Ceramic Disc:	4 Pcs Or 6pcs	Material:	Titanium, Aluminum Materials Optional
Protective Outer Cover:	Aluminum And Stainless Steel Optional	Delivery Time:	7workdays
Highlight:	Aluminum Ultrasonic Welding Transducer , Dukane 110-3122 Ultrasonic Converter , 1500W Ultrasonic Welding Transducer

High Quality Ultrasonic Welding Transducer Replacement Branson 803 Converter

Specifications:

Model	HS-B803
Frequency	20 kHz
Output power	1500 watt
Joint bolt	1/2-20unf
Ceramic disc Diameter	50 mm
Quantity of Ceramic discs	4 pcs or 6pcs
Capacitance	11.5 - 12.5 nf
Amplitude	20 um
Application	welding machine

Description:

The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

Advantages:

1. High output amplitudes
2. High mechanical quality factor
3. Mechanically very strong and stable
4. Poreless, high-density piezoceramics
5. Minimal thermal dissipation and power losses
6. Excellent electro-acoustic conversion efficiency

What we can do for you

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Product Display:
