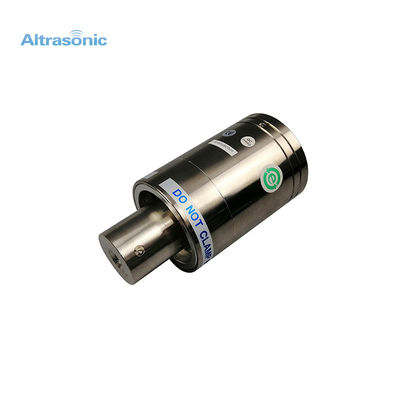

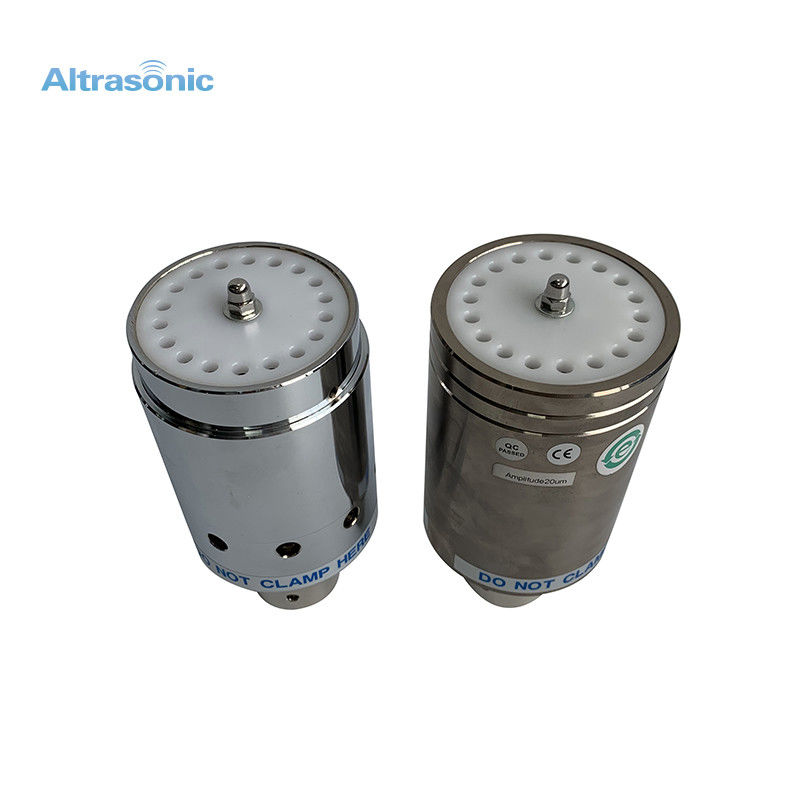

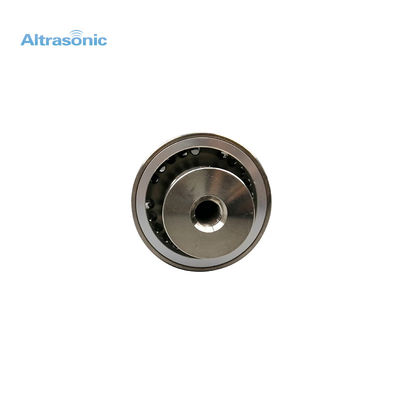

3300 Watt Ultrasonic Welding Converter 20Khz For Branson CJ20 Transducer

Large Image : 3300 Watt Ultrasonic Welding Converter 20Khz For Branson CJ20 Transducer

Product Details:

Place of Origin:	CHINA
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-BCJ20

Payment & Shipping Terms:

Minimum Order Quantity:	2 units
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000 units per month

Contact Now

3300 Watt Ultrasonic Welding Converter 20Khz For Branson CJ20 Transducer

Description

Product Name:	Ultrasonic Converter	Frequency:	20Khz
Ceramic Diameter:	50 Mm	Capacitance:	19-21 Nf
Power:	3300W	Application:	Plastic Welding Machine
Ceramic Disc:	6 Pcs	Material:	Titanium, Aluminum Materials Optional
Protective Outer Cover:	Aluminum And Stainless Steel Optional	Delivery Time:	7workdays
High Light:	Ultrasonic Welding Converter 20Khz , Branson CJ20 Transducer Ultrasonic Converter , 3300 Watt Ultrasonic Welding Converter

20Khz 3300w Ultrasonic Welding Converter Replacement Brason CJ20 Transducer

Specifications:

Model	HSBCJ20
Frequency	20 khz
Output power	3300 watt
Joint bolt	1/2-20 UNF
Ceramic disc Diameter	50 mm
Quantity of Ceramic discs	6 pcs
Capacitance	19-21 nf
Amplitude	20 um
Application	welding machine

Description:

Piezoelectric ultrasonic transducers converter used in a wide range of applications. These devices enable ultrasonic welding equipment to work effectively in commercial and industrial environments.

Applied Range:

Replacement ultrasonic converter for Dukane 110-3122,

for use with all 20KHz 2000 and 2000X actuator and IW systems.

Competitive Advantages:

1. Low heat
2. High efficiency
3. Large amplitude
4. Fast delivery
5. Competitive price
6. Stable output is not affected by load changes

What we can do for you

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Product Display
