Product Details:
|
| Frequency: | 20 Khz | Output Power: | 2000 Watt |
|---|---|---|---|
| Joint Bolt: | 1/2-20 UNF | Ceramic Disc Diameter: | 50mm |
| Quantity Of Ceramic Discs: | 6 Pcs | Capacitance: | 19-21 Nf |
| Amplitude: | 20 Um | Application: | Welding |
| Highlight: | Replacement 20khz ultrasonic welding transducer,50mm 20khz Ultrasonic Welding Transducer,Branson CJ20 Ultrasonic Welding Transducer |
||

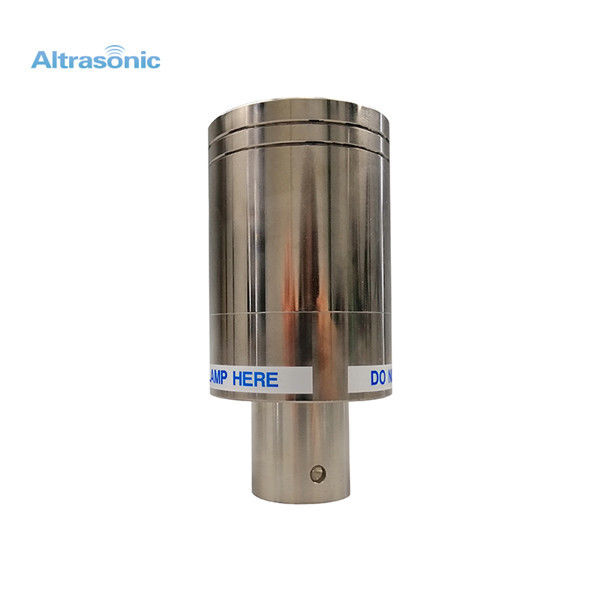

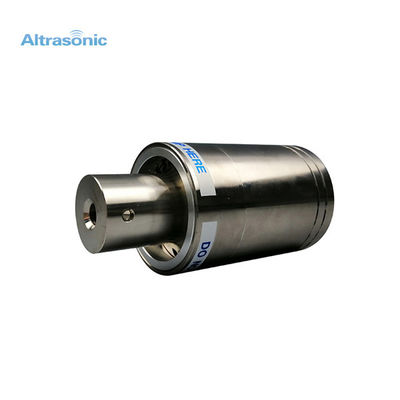

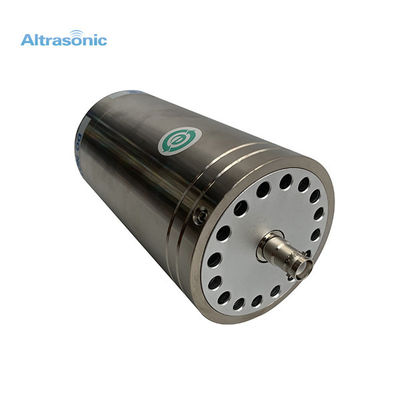

Replacement Branson CJ20 50mm 20khz Ultrasonic Welding Transducer
Specifications:
| Model | HSBCJ20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Application | welding machine |
Description:
The 2000 Watt 20 kHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
