Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation

Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation
Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation

Large Image :  Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-520F
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Plastic case
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, paypal
Supply Ability: 5000 pieces/month

Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation

Description
Production Name: Ultrasonic Amplitude Testing Instrument Frequency Range: 10kHz - 200kHz
Precision: 2.5% Sensitivity: 1 Um
Measuring Range: More Than 3 Um Supply Power: Built-in Power Supply ( DC 3V)
Type Of Indicator: Digital Test Direction: Up Or Down
High Light:

measurement instruments

,

analyzer instrument





Precision Ultrasonic Amplitude Testing Instrument With Easy Operation





Description:



Ultrasonic vibration amplitude is well know that one of the key indicators of ultrasound equipment. Amplitude of the ultrasonic vibration directly represent the size of the ultrasonic energy output, but also to related material strength and service life of the machine. Both for production of ultrasonic equipment manifactures or users using ultrasonic equipment, how to emphasize its importance can not be overstated. Because of the high frequency, amplitude is samll, it means nothing common test, itsi diffcult to measure. Usually with a laser vibrometer to measure, but the laser vibrometer equipment is too expensive and complicated to operate, not to mention the general production units,is a professional research and design units can be equipment also rare,impossible to ordinary applications.



Specification:



Item No. HS-520F
Precision 2.5%
Sensitivity 1 um
Measuring range More than 3 um
Frequency range 10kHz - 200kHz
Supply power Built-in power supply ( DC 3V)
Type of indicator Digital
Test direction Up or down



Quick Detail:



♦ Delicate design

♦ Reasonable structure

♦ Simple operation

♦ Accurate measurement

♦ Can replace the laser measuring device



Applications:



Ultrasonic plastic welding, spot welding, cutting, sonochemistry, cell disruption and other equipment output amplitude measurement, can also be measured separately ultrasonic transducer, horn, tool head output amplitude.



Competitive Advantage:



1. The measuring instrument of ingenious design, reasonable structure, simple operation, accurate measurement

2. Easy operation, wide applicability, no plug

3. Compact design, reliable work, can directly replace the laser measuring instrument

4. Quality assurance, sufficient stock, fast delivery

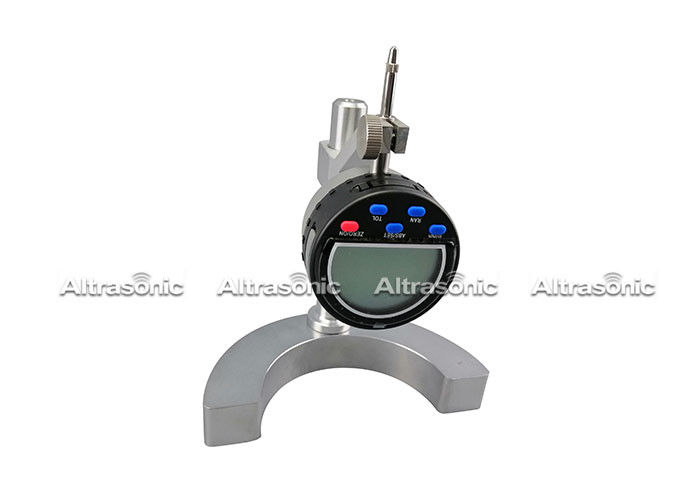

Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation 0

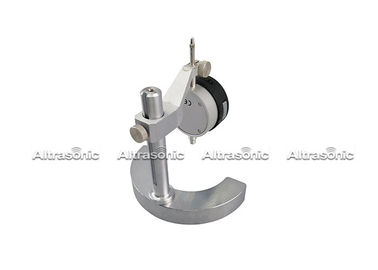

Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation 1

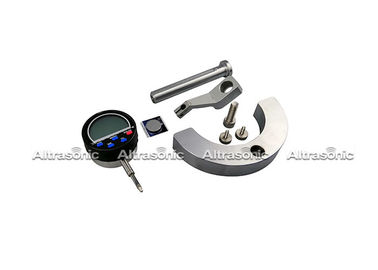

Precision Measurement Instruments Ultrasonic Amplitude Testing Easy Operation 2
