Product Details:
|
| Frequency: | 20 Khz | Output Power: | 2000 Watt |
|---|---|---|---|
| Joint Bolt: | 1/2-20 UNF | Ceramic Disc Diameter: | 50mm |
| Qty Of Ceramic Discs: | 4pcs | Capacitance: | 11-17 Nf |
| Amplitude: | 20 Um | Application: | Welding |
| Highlight: | piezo ultrasonic transducer,ultrasonic transducers |
||
Specification
| Model | HSD41C30 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-17 nf |
| Amplitude | 20 um |
| Application | Plastic welding machine |
Description
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

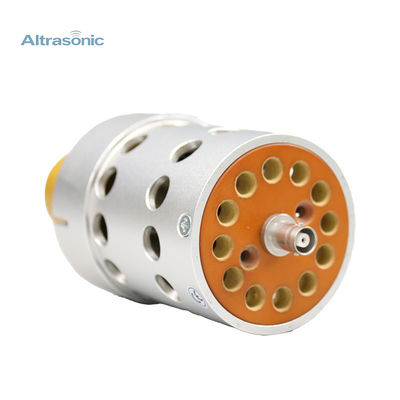

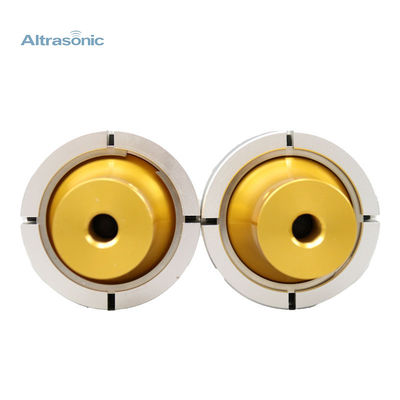

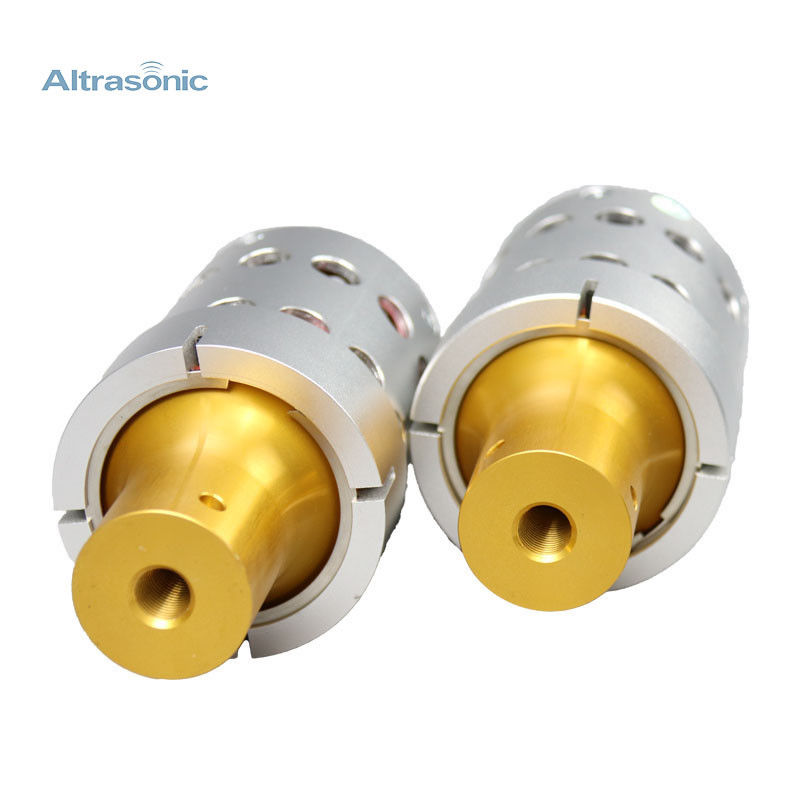

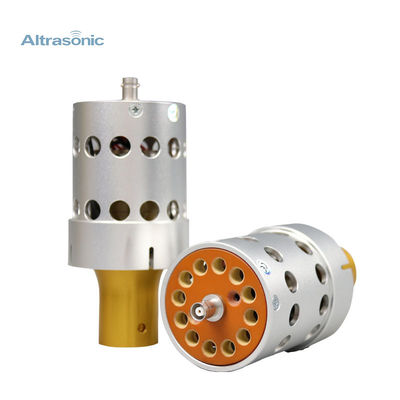

Replacement Dukane Heavy Duty Ultrasonic Converter Model 41C30 with BNC Type Connector
