Product Details:
|
| Frequency: | 70kHz | Output Power: | 100watt |
|---|---|---|---|
| Joint Bolt: | M4 | Ceramic Disc Diameter: | 10 Mm |
| Capacitance: | 0.34~0.4 Nf | Amplitude: | 1um |
| Highlight: | piezo ultrasonic transducer,ultrasonic transducers |
||

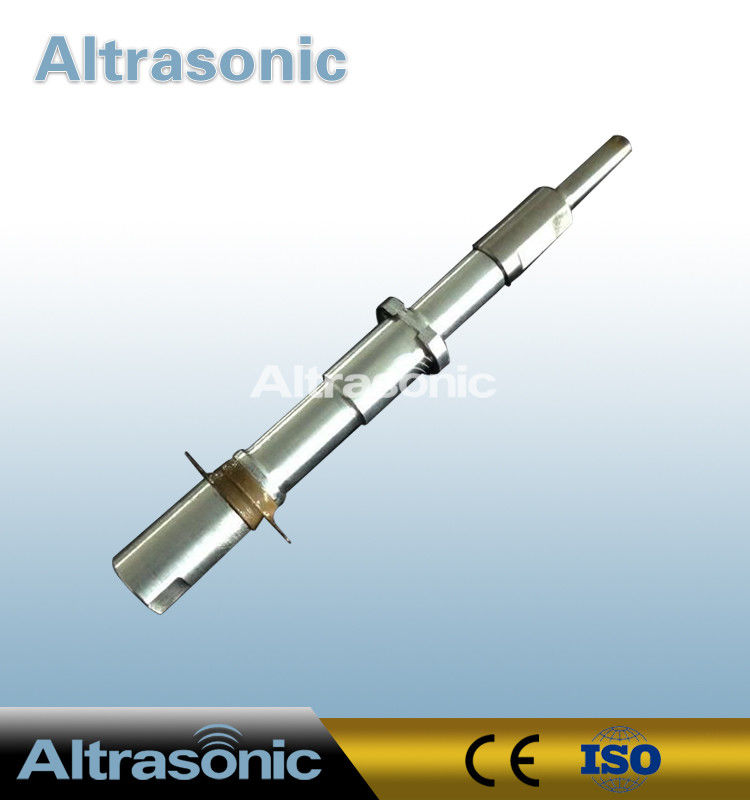

1um Amplitude Ultrasonic Transducer 70kHz 1000watt for Welding Machine
Specifications:
| Model | HS-1070-2z |
| Frequency | 70khz |
| Output power | 100watt |
| Joint bolt | M4 |
| Ceramic disc Diameter | 10 mm |
| Quantity of Ceramic discs | 2 pcs |
| Capacitance | 0.34~0.4 nf , |
| Amplitude | 1um |
| Application | Welding |
Service
We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.
Why choose Altrasonic ?
• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
• Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
upgrade our products.
• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
• Individual Customize. We can customize products according to your requirements, Also supply OEM service.
Customize ultrasonic solution for different applications.
Transducer Type
| The columnar type NTK TYPE (stabilized power and high reliablity widely application) | ||||||||||
| Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) | ||
| Yellow | Grey | Black | ||||||||
| 7015-4Z | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 10 |
| 6015-4Z | M20 X 1.5 or M16 X 1 | 60 | 4 | 15 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 | 10 |
| 6015-6Z | M20 X 1.5 | 60 | 6 | 15 | 15 | 14000-16000 | / | 19500-21000 | 2600 | 10 |
| 5015-4Z | M18 X 1.5 | 50 | 4 | 15 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 | 8 |
| 4015-4Z | M16 X 1 | 40 | 4 | 15 | 15 | 10000-11000 | 10500-11500 | 700 | 8 | |
| 5520-4Z | M18 X 1 | 55 | 4 | 20 | 15 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 | 8 |
| 5020-6Z | M18 X 1.5 | 50 | 6 | 20 | 15 | 18500-20000 | / | 22500-25000 | 2000 | 8 |
| 5020-4Z | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 | 8 |
| 5020-2Z | M18 X 1.5 | 50 | 2 | 20 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 | 6 |
| 4020-4Z | 1/2-20UNF | 40 | 4 | 20 | 15 | 9000-10000 | 9500-11000 | / | 900 | 6 |
| 4020-2Z | 1/2-20UNF | 40 | 2 | 20 | 25 | / | 4800-5500 | / | 500 | 5 |
| 5025-2Z | M12 X 1 | 50 | 2 | 25 | 25 | 5000-5600 | / | 7000-8000 | 500 | 4 |
| 3828-2Z | 1/2-20UNF | 38 | 2 | 28 | 30 | 3800-4300 | / | / | 500 | 3 |
| 3828-4Z | 1/2-20UNF | 38 | 4 | 28 | 30 | 7600-8500 | / | 10500-12000 | 800 | 4 |
| 3028-2Z | 3/8-24UNF | 30 | 2 | 28 | 30 | 2700-3100 | 3400-3800 | / | 400 | 3 |
| 2528-4Z | M8 X 1 | 25 | 4 | 28 | 30 | 3900-4300 | / | / | 400 | 4 |
| 2528-2Z | M8 X 1 or 3/8-24UNF | 25 | 2 | 28 | 35 | 1950-2200 | 2200-2500 | / | 300 | 3 |
| 3030-4Z | M10 | 30 | 4 | 30 | 30 | / | 6200-6900 | / | 700 | 4 |
| 3035-2Z | 3/8-24UNF | 30 | 2 | 35 | 40 | 2700-3100 | / | / | 500 | 2 |
| 3035-4Z | M10 X 1 | 30 | 4 | 35 | 30 | 5000-6200 | / | / | 800 | 3 |
| 2535-2Z | M8 X 1 | 25 | 2 | 35 | 40 | 1900-2200 | / | / | 400 | 2 |
| 2540-2Z | 3/8-24UNF | 25 | 2 | 40 | 40 | / | 2000-2300 | / | 500 | 2 |
| 3040-4Z | M10 | 30 | 4 | 40 | 30 | 5500-6200 | / | / | 1000 | 2 |
| 3050-4Z | M8 | 30 | 4 | 50 | 30 | 5500-6200 | / | / | 600 | 2 |
| 1560-2Z | M6 X 0.75 | 15 | 2 | 60 | 60 | / | / | 700-800 | 100 | 1 |
| 1070-2Z | M4 | 10 | 2 | 70 | 200 | / | / | 350-400 | 100 | 1 |
| The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application) | ||||||||||
| Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) | ||
| Yellow | Grey | Black | ||||||||
| 7015-4D | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 11 |
| 6015-4D | M18 X 1.5 | 60 | 4 | 15 | 15 | 9000-10000 | 10000-11000 | / | 2200 | 11 |
| 6015-6D | 1/2-20UNF | 60 | 6 | 15 | 15 | 19000-20500 | / | 23000-25000 | 2600 | 11 |
| 5015-6D | 1/2-20UNF | 50 | 6 | 15 | 15 | 17000-19000 | / | 23000-25000 | 2000 | 11 |
| 5020- 4DS | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | / | 1300 | 8 |
| 5020-4D | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | 14500-16000 | 1500 | 8 |
| 5020-6D | 1/2-20UNF | 50 | 6 | 20 | 15 | 19000-21000 | / | 22500-25000 | 2000 | 10 |
| 4020-6D | 1/2-20UNF | 40 | 6 | 20 | 15 | 13500-15000 | / | / | 1500 | 10 |
| 4020-4D | 1/2-20UNF | 40 | 4 | 20 | 15 | 8500-9300/ 9500-10500 | 10000-11000 | 10500-11500 | 900 | 8 |
| 3020-6D | 3/8-24UNF | 30 | 6 | 20 | 15 | 8000-9000 | / | / | 600 | 9 |
| 3030-4D | M8 or M8 X 1 | 30 | 4 | 30 | 20 | / | 6200-6900 | / | 800 | 5 |
| 3535-2D | M8 X 1 | 35 | 2 | 35 | 25 | / | / | 4500-5000 | 600 | 9 |
| 3535-4D | M8 X 1 | 35 | 4 | 35 | 20 | 6600-7400 | / | 9000-10000 | 1000 | 4 |
| 3035-4D | 1/2-20UNF | 30 | 4 | 35 | 20 | 5500-6200 | / | 9200-10200 | 800 | 4 |
| 2535-4D | M8 | 25 | 4 | 35 | 25 | 3900-4300 | / | / | 500 | 4 |
| 3040-2D | M8 | 30 | 2 | 40 | 30 | / | 3400-3800 | / | 500 | 2 |
| 2540-4D | M8 | 25 | 4 | 40 | 30 | 4500-5300 | / | / | 500 | 3 |
| 2040-2D | M8 | 20 | 2 | 40 | 40 | 1100-1300 | 1150-1350 | / | 300 | 2 |
PS:we can also customize depend on your requirements.
