Product Details:
|
| Frequency: | 30Khz | Power: | 200W |
|---|---|---|---|
| Blade: | Replaceable | Material Of The Blade: | Titanium |
| Application: | Cutting | Generator: | Digital |
| Highlight: | ultrasonic cutting knife,ultrasonic cutting devices |
||
High Speed Black Ce 30K Ultrasonic Fabric Cutting Machine With Low Noise
Description:
Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut, the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition. The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.
Specification:

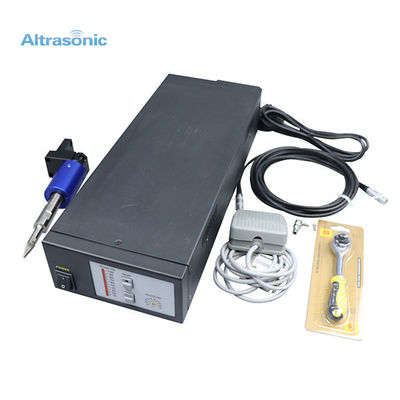

| Model | HS-C30 |
| Frequency | 30KHZ |
| Output Power | 200W |
| Generator | Digital generator, 452 x 180 x 100mm |

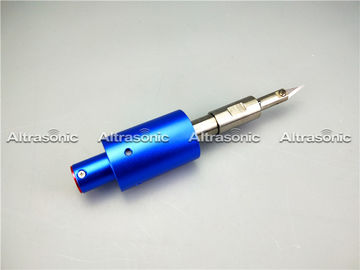

| Handle | Φ44×220 |

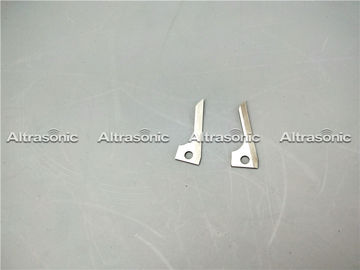

| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc；Cut blade 2pcs； 1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | titanium alloy, stainless steel |
Ultrasonic Cutters can cut difficult-to-cut materials
l Natural fibers
l Synthetic fiber
l Thin plastic products(Such as plastic film, cell phone case)
l All types of paper, bottom film
l Rubber, silicone
l Repair of printed circuit board copper foil
l ABS,PP,PE … other organic plastic sheet less than 2mm
l Various types of synthetic fabricsPlastic sheet
Compared to conventional methods, ultrasonic cutting delivers:
l Improved cut quality for carpets, headliners and plastics
l Lower initial investment and operating costs
l Reduced floor space requirements
l A greener footprint with less noise and waste
The following table presents the company tests for different material thickness, the recommended cutting speed data.
| Cutting Material | Thickness | Cutting speed |
| ABS/PE | 2mm | 4mm/s |
| 3mm | 2mm/s | |
| 4mm | 1mm/s | |
| PVC | 2mm | 15mm/s |
| Asian gram force | 2mm | 3mm/s |
| Non-woven fabric | 3mm | 2mm/s |
| Chloroprene rubber | 5mm | Easy to cut |
| Corrugated paper | 8mm | Easy to cut |
| Plywood | 2.5mm | Easy to cut |
| Glass fiber resin | 1.5mm | Easy to cut |
| Thick cardboard | 1.5mm | Easy to cut |
| Linen | 2mm | Easy to cut |
| Urethane | 3mm | Easy to cut |
| Nylon/PP | 3mm | Easy to cut |
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
