Product Details:
|
| Highlight: | ultrasonic cutting knife,ultrasonic cutting devices |
||
|---|---|---|---|
30Khz Ultrasonic Plastic Cutter For Bumpers
Description:
The mechanical vibration energy generated by the ultrasonic generator exceeds 20,000 blade vibration per second, which will heat and melt the part of the cutting material, causing the molecular chain to break apart rapidly. thus achieving the purpose of cutting the material, therefore, ultrasonic cutting does not require a particularly sharp blade, nor does it require a lot of pressure, which will not cause breakage and breakage of the cutting material. at the same tine, due to the ultrasonic vibration knife, friction is small, by reducing the material is not easy to adhere to the blade. viscous and elastics, frozen food , rubber or objects which is inconvennient to add pressure to cut, are especially effective.
Specification:
| Model | HS-C30 |
| Frequency | 30KHZ |
| Output Power | 200W |
| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |

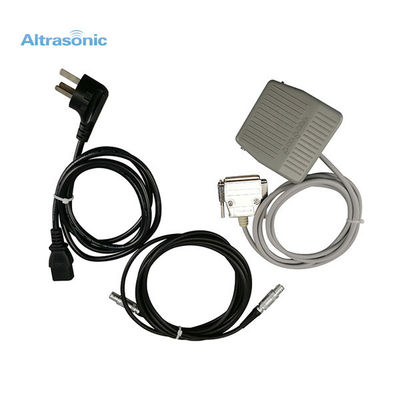

| Accessory | Foot switch 1pc；Cut blade 2pcs； 1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | titanium alloy, stainless steel |
Advantages:
The advantage of ultrasonic cutting is that it has a fusion effect on the cutting site at the same time.The cutting part is perfectly hemmed to prevent loose organization of the cutting material (such as the flying edge of textile material).
Applications:
1. Cutting and punching plastic and thermoplastic doors.
2. Cut food and plants, such as frozen meat, candy, and chocolate.
3. For PVC, rubber, leather, plastics, cardboard, polypropylene, etc.
4. Cutting in the auto industry
