Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile

China Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile supplier
Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile supplier Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile supplier Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile supplier Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile supplier

Large Image :  Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT28

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000
Contact Now
Detailed Product Description
Product Name:: 28 Khz Portable Ultrasonic Welding Gun With Digital Power Supply Frequency:: 28Khz±1 KHz
Frequency Tuning Method:: Auto Tuning Power:: 500W
Components:: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Horn:: Working Surface Diameter 9-10mm, Steel Material
Welding Type:: Hand Held Operation Net Weight:: 10kgs

Ultrasonic Automatic Riveting Welding Machine 28KHz 500W For Automobile



Specifications:



  Gun Type Cylinder Type
Model HS-35G HS-28G HS-28G HS-20G HS-28C HS-28C HS-28C
Frequency 35k 28k 28k 20k 28k 28k 28k
Power 700 300&500 400&700 900 300&500 400&700 500&800
Horn ≤10mm ≤10mm ≤12mm ≤13mm ≤8mm ≤12mm ≤12mm
Housing Diameter 51mm 64mm 40mm 45mm 60mm
Handle Size 100mm×45mm×32mm —— —— ——
Weight Without Wire and Horn 0.6kg 1.3kg 1.3kg 1.5kg 0.6kg 0.6kg 1.3kg
Digital generator
Analog generator



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



Description:



Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K, 30K three different frequencies. Can be different for the following purposes;

Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic
work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.





Applications:



Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment,the toy industry, communications equipment and other industries.



Toy industry Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc
Electronic products

Recording, audio tape boxes and core wheel, disk enclosure, board of mobile

phone batteries and rectifier transformers, switches and sockets, remote control,

electronic swatter, pseudo-imitation caps, etc

Household appliances

Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle

air-hsiang, computer, etc

Stationery,

daily necessities

Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell,

the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles

sealed container

Car, motorcycle

Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual

welding jacket, the car door welded baffle welding, automobile, car mats welding,

automotive bumper repair welding

The application

of the sports industry

Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool

table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps,

gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path

to indicate the brand, the X Display Stand and other sports equipment, etc

The packaging industry Hollow crate welding, ziplock welded



Competitive Advantage:



Rapid sonotrode exchange

High quality, heavy duty aluminum housing

High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

Timer-controlled air cooling as an option

Mobile – can be transported by handle on the generator case

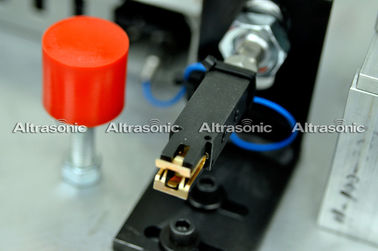

Ultrasonic Automatic Riveting Welding Machine 28KHz 500W For Automobile

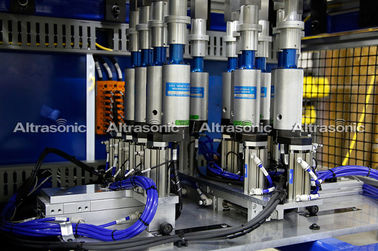

Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile

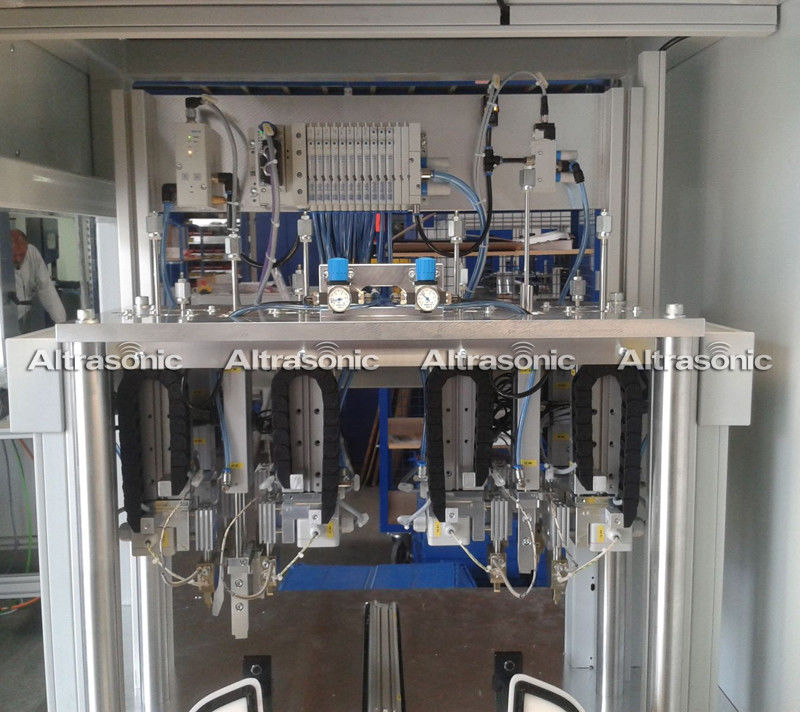

Automatic Ultrasonic Riveting Welding Machine 28KHz 500W For Automobile
