1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts

China 1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts supplier
1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts supplier 1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts supplier 1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts supplier

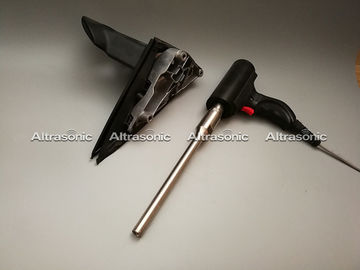

Large Image :  1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: HSW35 Frequency: 35kHz
Power: 1000W Horn: ≤10mm
Housing Diameter: 44mm Shipping: TNT UPS DHL FEDEX
Warranty: 1 Year Generator: Digital





Ultrasonic Riveting 35kHz 1000W Staking Assembly for Automotive Interior Parts



Description:



Ultrasonic welding is widely used in the automotive industry. The sonotrode is correctly dimensioned through the use of finite element analysis (FEA). Applications range from interior components (side door trim, center console) to engine compartment components (cylinder head cover, engine covers), to lighting, filters and acoustic foams. Welders can be operated immediately without heat-up time. Cycle times are short, and energy consumption is low.

Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.





Principle:



The basic principle of ultrasonic riveting is to convert high-frequency electrical energy into high-frequency mechanical energy acting on thermoplastics in a reciprocating longitudinal movement, generating frictional heat at the plastic/plastic or plastic/metal interface, forming local melting, through controlled melting and shaping plastics. A boss or pin to lock another part.
During ultrasonic riveting, the control flow of molten plastic is used to lock another part (usually another plastic or metal). The preformed plastic pin passes through the hole in the part to be locked, and the high-frequency ultrasonic vibration from the welding head is transmitted to the upper part of the pin. The pin is melted due to the frictional heat and fills the cavity volume of the welding head, resulting in the locking of the spear head. Components. The plastic pin is gradually melted under continuous light pressure to form a rivet. The slight pressure of the horn causes the pin head to form a specific shape (as determined by the end structure of the horn). After the vibration stops, the plastic solidifies and a material is consolidated.





Specification:



Item No. HSW28 HSW30 HSW35 HSW40 HSW60
Frequency 28khz 30khz 35khz 40khz 60khz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg


Advantage:


1. Uneven asymmetrical geometries can be welded.

2. Delicate component surfaces stay mark-free.

3. Short weld cycles between 100 and 300 milliseconds.

4. Targeted energy input protects sensitive electronic elements.

5. Different types of material can be welded or bonded by embedding.

6. Smaller machine footprint compared to other joining processes.





Application:


1. Lamp plastic riveting

The application of riveting technology in the internal circuit of the ceiling lamp in the car. The reserved studs on the plastic seat of the ceiling lamp pass through the pre-punching holes on the metal sheet, and then the metal plate conductors are riveted by the hemispherical round caps, and the parallelly placed metal pieces are separated by the vertical ribs to make them insulated and shackled. This can effectively prevent the vibration of the metal piece conductor from falling off, and fundamentally eliminate the short circuit phenomenon.

2. Door trim riveting

The trim panel skin component that is riveted to the press-formed wood fiber door frame uses an air core riveting column (tubular hot pile) for the outer flange riveting process. Due to the large contact area of the eversion edge and the high connection strength, the loosening, falling off or tearing caused by long-term vibration can be effectively avoided, so that the whole component can more effectively realize the functions of sound absorption, noise reduction and thermal insulation. Effectively improved the interior environment. In the narrow part near the edge, the vertical rib riveting process is adopted to increase the contact area of the rivet cap, and the phenomenon of tearing and falling off when the force is applied at the edge is prevented, thereby effectively overcoming the shortcoming of the poor stretching effect of the wood fiber board. , and finally combined with plastic parts into a structure.

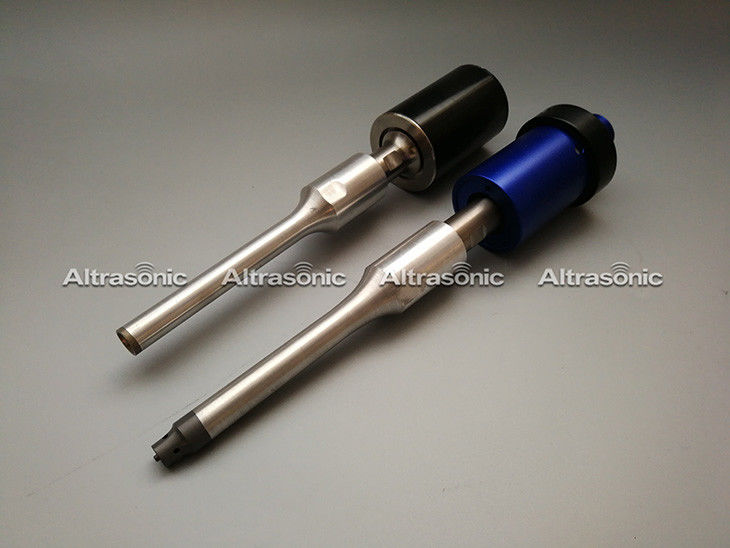

1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts

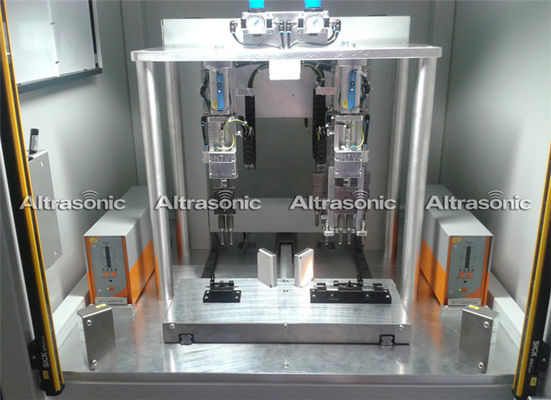

1000W Ultrasonic Riveting 35kHz Staking Assembly For Automotive Interior Parts
