High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper

China High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper supplier
High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper supplier High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper supplier High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper supplier High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper supplier

Large Image :  High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 35Khz
Power: 300-1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A



High Tech Handheld Ultrasonic Riveting Weld Machine For Vehicle Bumper



Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg





Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs.



The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head.



The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films.






Advantages  of Ultrasonic in Auto Industry.



  • Equipped with welding timer
  • Light weight, easy to take, easy to operate (handheld)
  • Easty to set time welding
  • Application in riveting, forming and welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec





Different Types of Horn



Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.



Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.



Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.

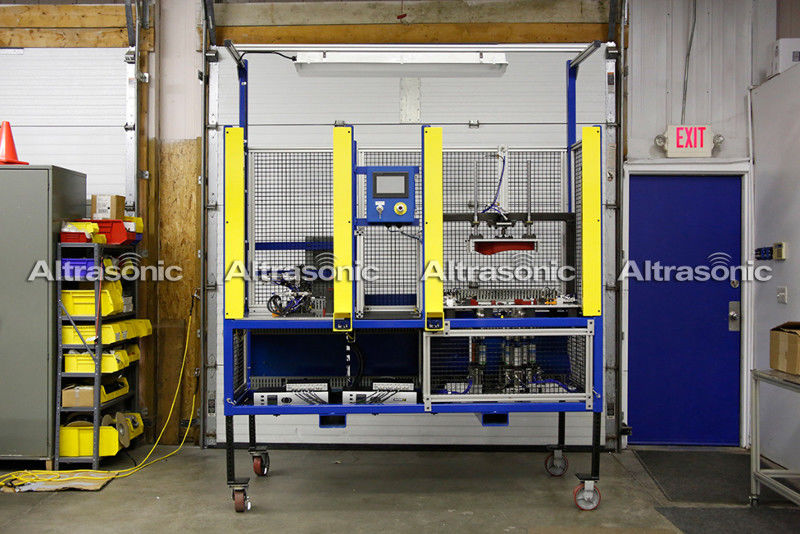

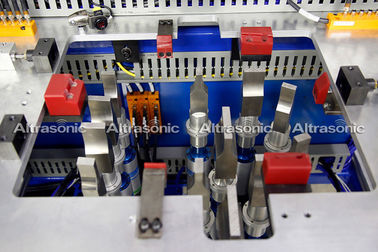

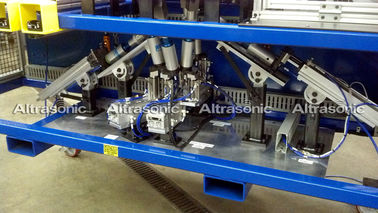

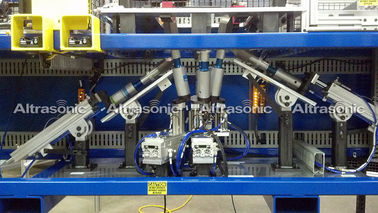

High Tech Handheld Ultrasonic Riveting Weld Machine For Vehicle Bumper



High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper

High Tech Handheld Ultrasonic Riveting , Ultrasonic Welding Equipment For Vehicle Bumper

Tag: ultrasonic spot welder,portable spot welder
