Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry

China Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry supplier
Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry supplier Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry supplier Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry supplier Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry supplier

Large Image :  Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PT35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 35Khz
Power: 300-1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A





Light Weight 35KHz Ultrasonic Riveting Welding Machine for Robotic Motor Industry

The use of ultrasonic technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs. Thus, the ultrasonic welding machine is suitable for auto mudguard welding.

Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg
Digital generator
Analog generator



Advantages and Disadvantages of Ultrasonic in Welding of Mudguard.

Advantages:
1. application in riveting, forming and welding
2. light weight, easy to take, easy to operate (handheld)
3. Equipped with welding timer
4. Easty to set time welding
5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
6. FET power output
7. Automatic resonance
8. Maintain the amplitude function automatically
9. Starting: achieving maximum power with 105msec

Disadvantages:
Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).


Condition of Ultrasonic Welding:



Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.



The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).


Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.


Principle of Amplifying
They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.

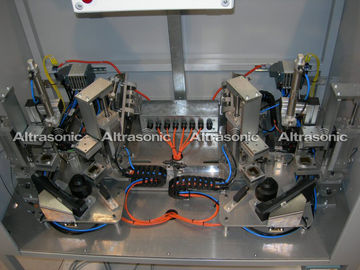

Light Weight 35KHz Ultrasonic Riveting Welding Machine for Robotic Motor Industry

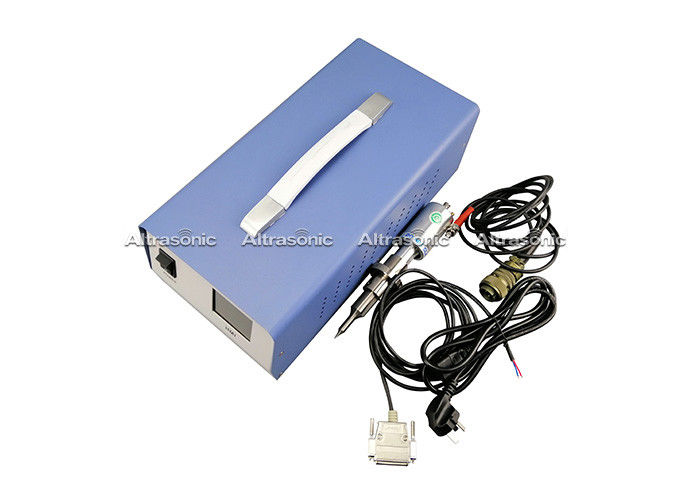

Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry

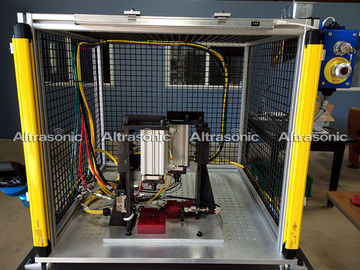

Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry

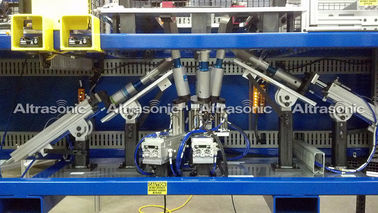

Light Weight 35KHz Ultrasonic Riveting Welding Machine For Robotic Motor Industry
