Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels

China Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels supplier
Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels supplier Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels supplier Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels supplier Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels supplier Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels supplier Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels supplier

Large Image :  Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT30

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Riveting Machine Frequency: 35Khz
Power: 1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 15Kgs
Max Current: 15A

Automation Ultrasonic Riveting Machine for Automotive interiors and Auto door panels



Definition of Ultrasonic Riveting:



Ultrasonic riveting is suitable for the positive joining of thermoplastics together or to non-plastics.

The main difference between ultrasonic welding and ultrasonic riveting lies in the fact that when riveting melting deformation occurs and only one of the two joining sections is plasticised. This makes it possible to join any thermoplastics that are not polymer compatible to each other or to non-plastics. As a result, the riveted joins are almost free from play, because the cold riveting tool allows the fused rivet head to cool under pressure.



Ultrasonic riveting is also very efficient and at the same time saves energy.


The technology is used mainly where fusion welding is impossible, where metal parts are to be inserted into plastic casings or where the join is not subsequently visible.



ALTRASONIC designs and manufactures standard and special machines for riveting interior trims, bumpers or airbag components, particularly for the automotive industry.



Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 1000w 1000w 1000w 1500w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg

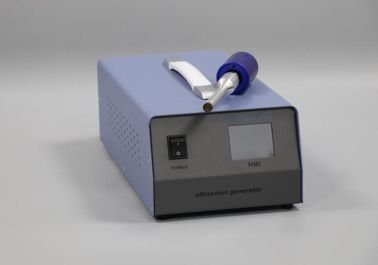

Digital generator
Analog generator





Advantages of Ultrasonic in Automotive Industry.



Advantages:

1. application in riveting, forming and welding

2. light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easty to set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec


Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.



Applications In Automotive:

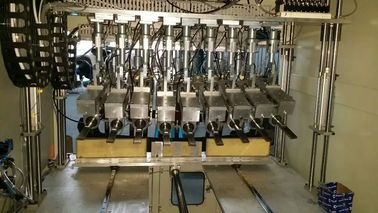

Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.





Automation Ultrasonic Riveting Machine for Automotive interiors and Auto door panels



Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels

Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels

Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels

Automation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door PanelsAutomation Ultrasonic Riveting Machine For Automotive Interiors And Auto Door Panels



We accept customization and welcome your visit!

If you are interested in ultrasonic automation system for automotive parts, welcome to contact with Hogo Lv, Tel. 0086-15158107730, Email: admin@altrasonic.com



Tag: ultrasonic spot welder,portable spot welder
