Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern

Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern
Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern

Large Image :  Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PT30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month

Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern

Description
Product Name: Ultrasonic Riveting Welding Machine Frequency: 30Khz
Power: 300-1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A
High Light:

ultrasonic spot welding machine

,

ultrasonic welding machine

Car Bumper Riveting Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern



Specifications:

Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg



Two Types of Horn:

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



Types of Ultrasonic Welding
Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.



Competive Advantages in Bumper Riveting

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec

Principle of Ultrasonic Car Bumper Riveting Spot Welder
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.



Condition of Ultrasonic Welding:

Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.

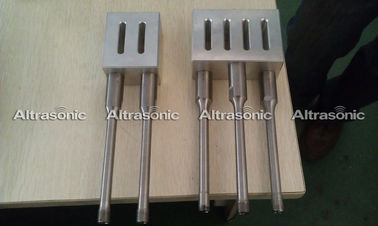

Three Common Horn Material

1.Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

2. Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

3. Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.



Car Bumper Riveting Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern

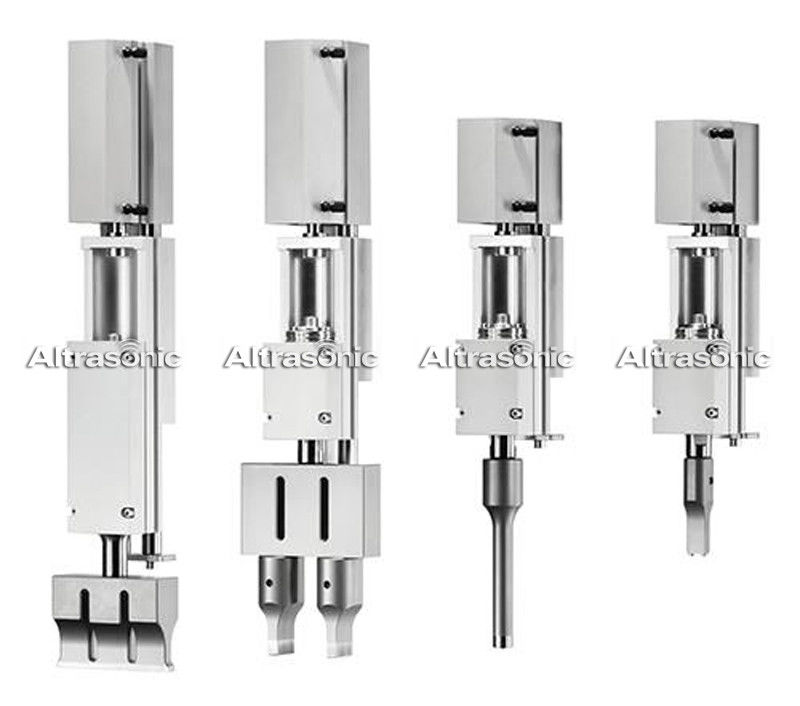

Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern 0



Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern 1



Car Bumper Riveting Welder / Automotive Riveting Welder With Ultrasonic Master Pattern 2
