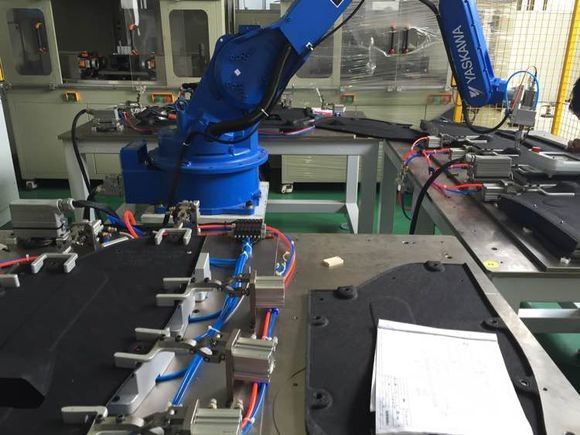

Match Multiple Automobile Robot Ultrasonic Spot Welding Machine

Match Multiple Automobile Robot Ultrasonic Spot Welding Machine
Match Multiple Automobile Robot Ultrasonic Spot Welding Machine Match Multiple Automobile Robot Ultrasonic Spot Welding Machine Match Multiple Automobile Robot Ultrasonic Spot Welding Machine

Large Image :  Match Multiple Automobile Robot Ultrasonic Spot Welding Machine

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month

Match Multiple Automobile Robot Ultrasonic Spot Welding Machine

Description
Product Name: 30 Khz Portable Ultrasonic Spot Welder Frequency: 30Khz±1 KHz
Power: 1000W Frequency Tuning Method: Auto Tuning
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator
High Light:

ultrasonic plastic welding machine

,

ultrasonic welding machine

Match Multiple Automobile Products and High Quality of Robot Ultrasonic Welding





Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg
Digital generator
Analog generator



Gun and Cylinder Type of Horn



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.





Advantages in Autobody Spot Welding

  • Application in riveting, forming and welding
  • light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec



Applications in Automobile Different Parts



Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.



Amplifying and Different Type of Horn



Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.





There are three common horn material:

Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.





Match Multiple Automobile Products and High Quality of Robot Ultrasonic Welding



Match Multiple Automobile Robot Ultrasonic Spot Welding Machine 0



Match Multiple Automobile Robot Ultrasonic Spot Welding Machine 1





Match Multiple Automobile Robot Ultrasonic Spot Welding Machine 2



Match Multiple Automobile Robot Ultrasonic Spot Welding Machine 3







Match Multiple Automobile Robot Ultrasonic Spot Welding Machine 4



Match Multiple Automobile Robot Ultrasonic Spot Welding Machine 5



Payment:



Tag: ultrasonic spot welder,sonic welding machine



Match Multiple Automobile Robot Ultrasonic Spot Welding Machine 6



FAQ:



1. What is ultrasonic puncture welding?



Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.



2.How to use ultrasonic puncture welding technology?



It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.



3.How to design ultrasonic puncture welding?



Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.

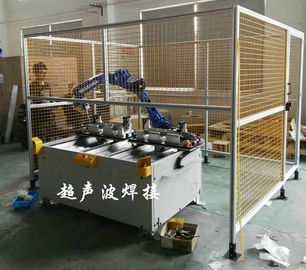

4.What is the robot ultrasonic welding machine of car bottom panel?



The robot ultrasonic welding machine of car bottom panel is known as Robotic arm car bottom panel Plastic parts Ultrasonic riveting equipment, It is an automatic equipment that combines the robot with the ultrasonic system. The robot is equipped with ultrasonic welding head to riveted the plastic parts of the car's bottom panel, and make sure that the car bottom panel is installed and the ultrasonic welding document is strong.
