No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper

China No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper supplier
No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper supplier No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper supplier No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper supplier

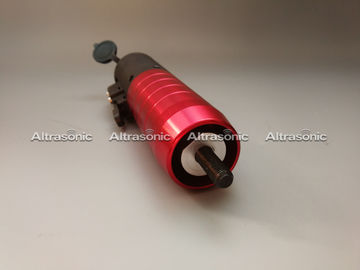

Large Image :  No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSP30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Product Name: 30 Khz Portable Ultrasonic Spot Welder Frequency: 30Khz±1 KHz
Power: 1000W Frequency Tuning Method: Auto Tuning
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Welding Type: Hand Held Operation

No damage Cracks or Deformation of Car Bumper by Ultrasonic Puncture Welding





Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg



Two Types of Horn



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



Competitive Advantages in Bumper Riveting

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec



Principle of Ultrasonic Car Bumper Riveting Spot Welder


When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.



Condition of Ultrasonic Welding:



Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.





Types of Ultrasonic Welding


Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.





Three Common Horn Material

1.Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

2. Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

3. Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.







No damage Cracks or Deformation of Car Bumper by Ultrasonic Puncture Welding



No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper



No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper





No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper



No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper







No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper



No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper



Payment:



Tag: ultrasonic spot welder,sonic welding machine



No Damage Cracks 30 Khz Portable Ultrasonic Spot Welder For Car Bumper



FAQ:



1. What is ultrasonic puncture welding?



Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.



2.How to use ultrasonic puncture welding technology?



It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.



3.How to design ultrasonic puncture welding?



Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.



4.How many method for Car bumper punching?



Hydraulic punching of car bumper punching

Ultrasonic punching of car bumper punching

Car bumper gas-liquid boosting cylinder punching
