800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding

China 800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding supplier
800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding supplier 800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding supplier 800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding supplier 800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding supplier

Large Image :  800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSG35

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs for one month
Contact Now
Detailed Product Description
Product Name: 35Khz Portable Ultrasonic Spot Welder Frequency: 35Khz±1 KHz
Power: 800W Frequency Tuning Method: Auto Tuning

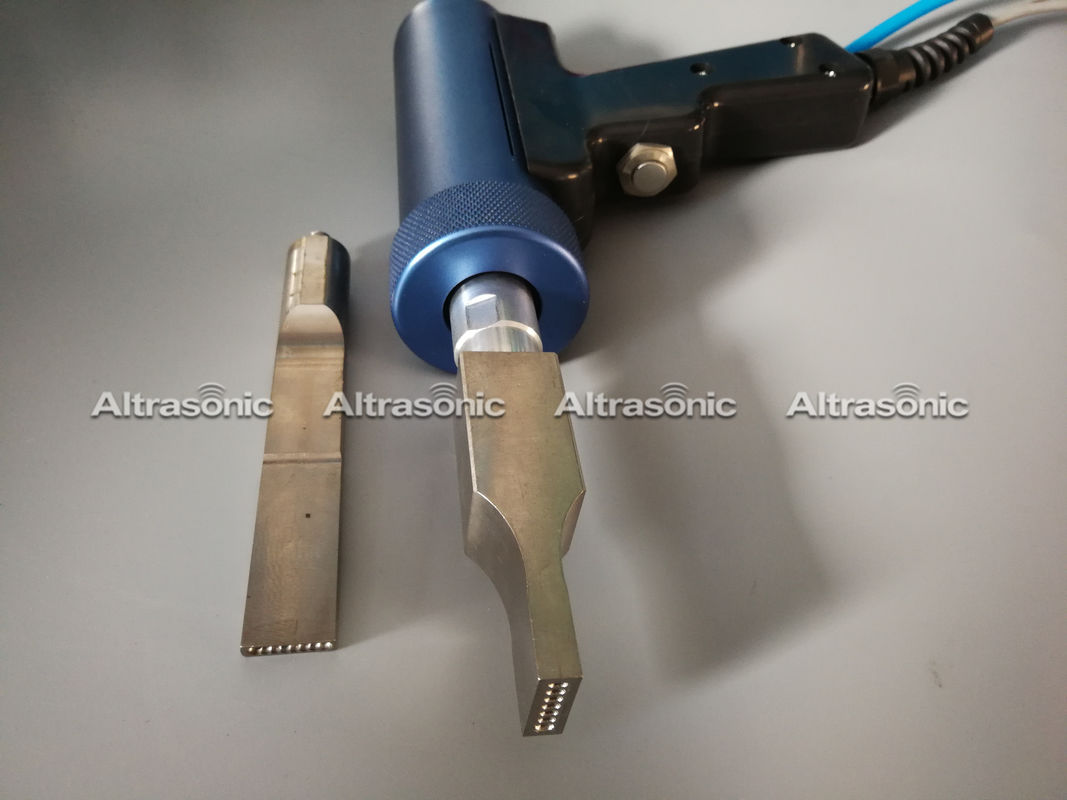

Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Welding Type: Hand Held Operation

Ultrasonic Puncture Welding Of Auto Radar Support Welding​​





Definition of Ultrasonic Welding:



The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head. The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films.





Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg

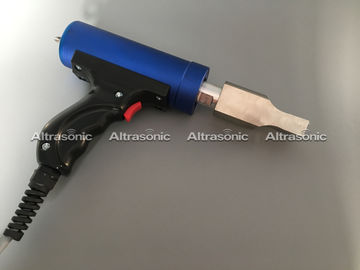

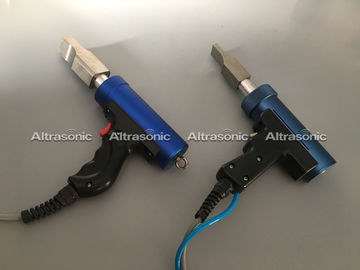

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.





Different Applications of Ultrasonic Welding:


Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.





Competitive Advantages

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easily set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec

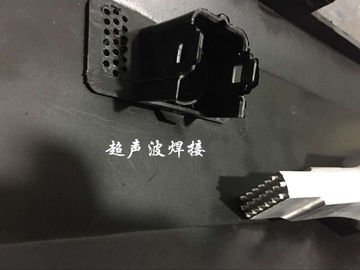

Ultrasonic Puncture Welding Of Auto Radar Support Welding





800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding



800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding



800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding



800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding



800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding



800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding



Payment:



Tag: ultrasonic spot welder,sonic welding machine



800W Ultrasonic Puncture Welding Machine For Auto Radar Support Welding



FAQ:



1. What is ultrasonic puncture welding?



Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.



2.How to use ultrasonic puncture welding technology?



It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.



3.How to design ultrasonic puncture welding?



Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.



4.Conclusion of auto internal and external parts puncture welding



General auto internal and external parts ultrasonic puncture welding design lateral thickness not less than 3 mm, inner layer thinner than the outer, the error range can be plus or minus 0.3 mm. We can design positioning groove or ultrasonic welding line can be designed to assist welding.
