Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch

China Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch supplier
Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch supplier Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch supplier Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch supplier

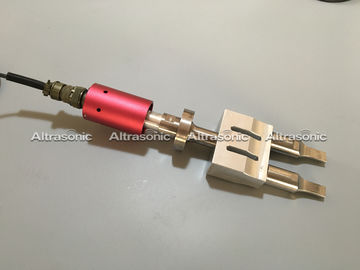

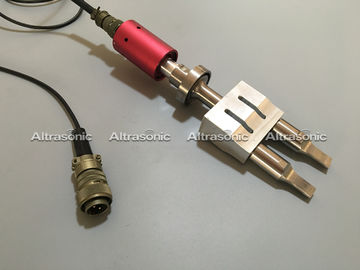

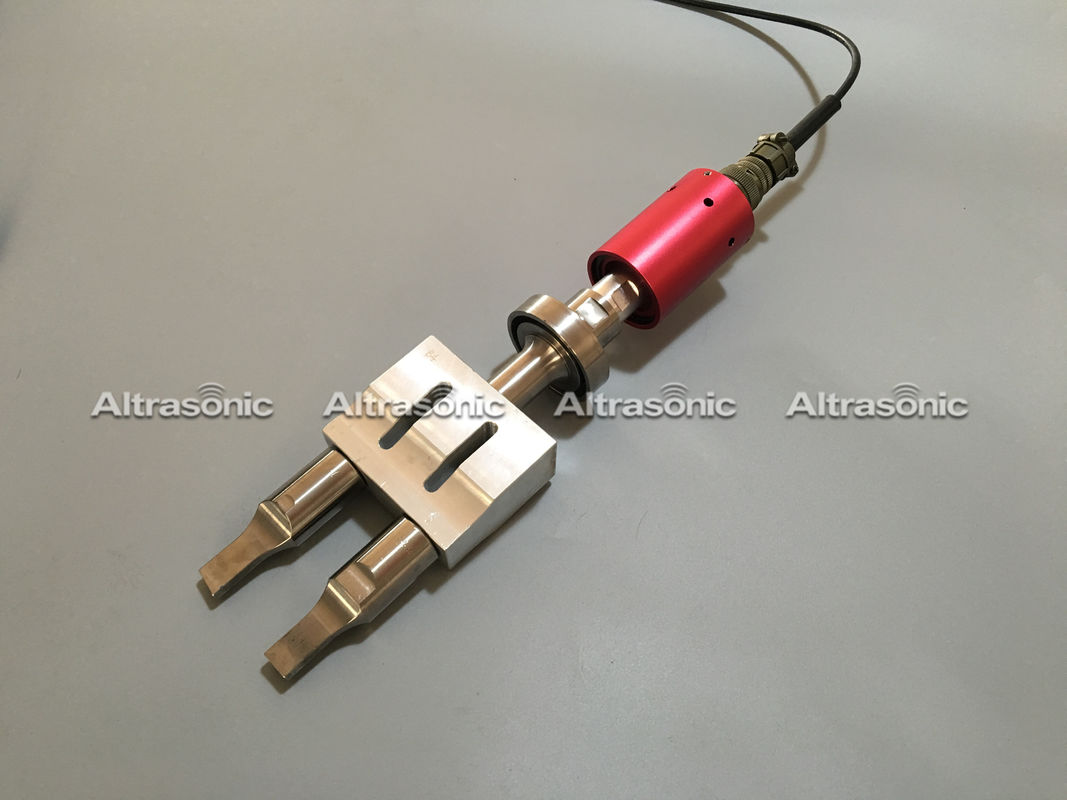

Large Image :  Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSP35

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Product Name: 35 Khz Portable Ultrasonic Spot Welder Frequency: 35Khz±1 KHz
Power: 900W Frequency Tuning Method: Auto Tuning
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Welding Type: Hand Held Operation

Ultrasonic Puncture Welding Of Auto Wheel Arch Welding





Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.





Advantages and Disadvantages of Ultrasonic in Auto Industry.



Advantages:

  • Equipped with welding timer
  • Light weight, easy to take, easy to operate (handheld)
  • Easty to set time welding
  • Application in riveting, forming and welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec

Disadvantages:



Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).





Different Applications of Ultrasonic Spot Welder



Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.




Different Types of Horn


Titanium
high price, excellent performance good toughness and low loss, difficult to be processed;
Its amplitude can reach to 60mm.

Aluminum
low price, fast loss, easy to be processed;
Its highest amplitude less than 300mm.

Steel
too hard to be made as horn;
its highest amplitude less than 25mm;
It is suitable for cutting but the blowpipe need to be added in for its cooling.





Ultrasonic Puncture Welding Of Auto Wheel Arch Welding



Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch







Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch



Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch



Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch



Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch



Payment:



Tag: ultrasonic spot welder,sonic welding machine



Light Weight Ultrasonic Puncture Welding Machine For Auto Wheel Arch



FAQ:



1. What is ultrasonic puncture welding?



Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.



2.How to use ultrasonic puncture welding technology?



It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.



3.How to design ultrasonic puncture welding?



Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.
