Manual Ultrasonic Penetration Welding Machine For Automotive Mount

Manual Ultrasonic Penetration Welding Machine For Automotive Mount
Manual Ultrasonic Penetration Welding Machine For Automotive Mount Manual Ultrasonic Penetration Welding Machine For Automotive Mount Manual Ultrasonic Penetration Welding Machine For Automotive Mount Manual Ultrasonic Penetration Welding Machine For Automotive Mount

Large Image :  Manual Ultrasonic Penetration Welding Machine For Automotive Mount

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSPT35
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month

Manual Ultrasonic Penetration Welding Machine For Automotive Mount

Description
Product Name: 35 Khz Portable Ultrasonic Spot Welder Frequency: 35Khz±1 KHz
Power: 900W Frequency Tuning Method: Auto Tuning
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Welding Type: Hand Held Operation
High Light:

ultrasonic spot welding machine

,

ultrasonic plastic welding machine

Manual Ultrasonic Penetration Welding Machine For Automotive Mount



Specifications:


Model: HS-GT35
Frequency: 35Khz
Horn: customized
Weight: 10KG
Generator: digital generator


Gun and Cylinder Type of Horn

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.
Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.


Description:

Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K,30K three different frequencies. Can be different for the following purposes;
Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.
Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.
Ultrasonic welding: the use of ultrasound machine small welding head, the two pieces of plastic products into multi-point welding, or welding the first row of teeth on a direct pressure on the two plastic work piece, so as to achieve the effect of ultrasonic welding.

Portable Ultrasonic Plastic Spot Welding Gun principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.


Applications in Different Areas:

Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment,the toy industry, communications equipment and other industries.


Toy industry Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc
Electronic products

Recording, audio tape boxes and core wheel, disk enclosure, mobile phone accessories, following, battery shell, chargers, valve control type sealed lead-acid battery maintenance, 3 inches floppy disk, U disk, SD card, CF card, USB connector, bluetooth; and rectifier transformers, switches and sockets, remote control,
electronic swatter, pseudo-imitation caps, prepaid water meter meter, communications equipment,etc

Household appliances

Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle
air-hsiang, computer, etc

Stationery,
daily necessities

Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell,
the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles
sealed container

Car, motorcycle

Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual
welding jacket, the car door welded baffle welding, automobile, car mats welding,
automotive bumper repair welding

The application
of the sports industry

Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool
table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps,
gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path
to indicate the brand, the X Display Stand and other sports equipment, etc

The packaging industry Hollow crate welding, ziplock welded



Competitive Advantage:

  • Rapid sonotrode exchange
  • High quality, heavy duty aluminum housing
  • High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet
  • Timer-controlled air cooling as an option
  • Mobile – can be transported by handle on the generator case





Manual Ultrasonic Penetration Welding Machine For Automotive Mount

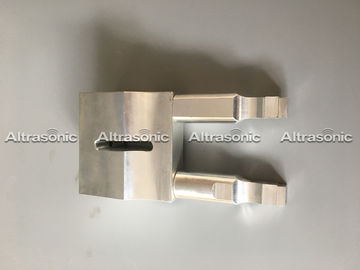

Manual Ultrasonic Penetration Welding Machine For Automotive Mount 0

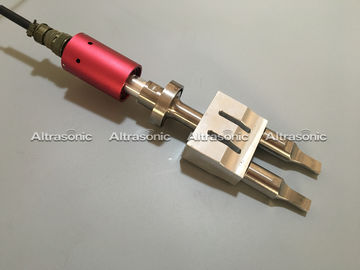

Manual Ultrasonic Penetration Welding Machine For Automotive Mount 1

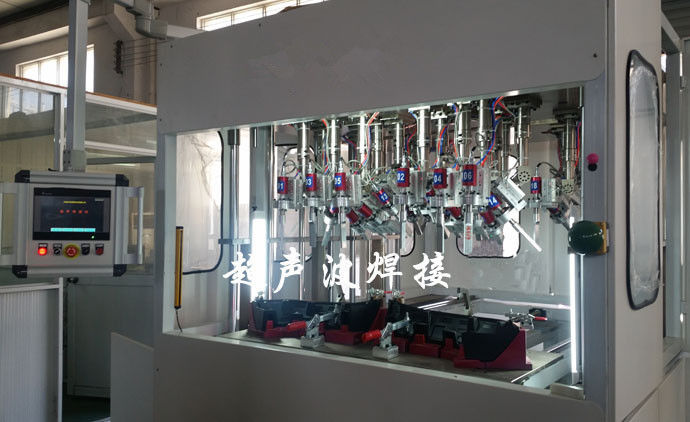

Manual Ultrasonic Penetration Welding Machine For Automotive Mount 2

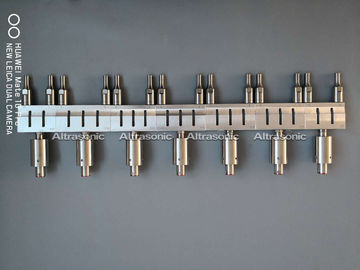

Manual Ultrasonic Penetration Welding Machine For Automotive Mount 3


Manual Ultrasonic Penetration Welding Machine For Automotive Mount 4

Manual Ultrasonic Penetration Welding Machine For Automotive Mount 5

Payment:


Tag: ultrasonic spot welder,sonic welding machine



Manual Ultrasonic Penetration Welding Machine For Automotive Mount 6





FAQ:


1. What is ultrasonic puncture welding?

Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.

2.How to use ultrasonic puncture welding technology?

It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.

3.How to design ultrasonic puncture welding?

Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.
