High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob

China High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob supplier
High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob supplier High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob supplier High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob supplier High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob supplier High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob supplier

Large Image :  High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PT30

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description

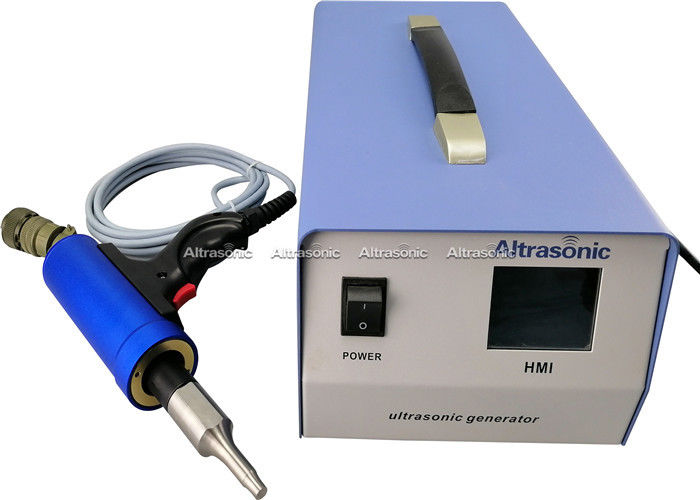

Product Name: Ultrasonic Spot Welding Machine Frequency: 30Khz
Power: 800W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A



Higher Performance Auto Riveting Rear Mirror Doorknob Ultrasonic Welding



Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg



Advantages and Disadvantages of Ultrasonic in Auto Industry.



Advantages:

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec



Disadvantages:



Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).



Condition of Ultrasonic Welding:



Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.



Attention of Ultrasonic Welding



With the amplitude, the higher the amplitude, the higher the temperature rise. The pressure is applied to the molded article using a cylindrical gaze. General compressed air pressure is 0.1-0.3MPa (pressure gauge), sometimes higher. But if the use of high pressure, it will hinder the cylindrical vibration.

The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).

Portable Ultrasonic Auto Rear Mirror Welder Principle:


When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.



Applications In Automobile:



Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.



Components and Amplifying Principle



Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.



Higher Performance Auto Riveting Rear Mirror Doorknob Ultrasonic Welding

High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob



High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob



High Performance Ultrasonic Welding Machine Auto Riveting Rear Mirror Doorknob



Tag: ultrasonic spot welder,portable spot welder
