50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying

50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying
50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying 50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying 50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying

Large Image :  50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-N50
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per year

50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying

Description
Product Name: Ultrasonic Nozzle Spray Frequency: 50Khz
Atomization Volume: 2L/H Average Particle Diameter Of Fog: 28um
Power: 30W Atomization Head Structure: Cylindrical
Power Consumption: 0.01 Degrees/Kg Voltage: 220V/110V
Warranty: 1 Year Certification: CE Certificate
High Light:

ultrasonic nozzle spray

,

ultrasonic nebulizer machine



50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying





Description:

Ultrasonic spray (FOG) is to use the energy of ultrasonic water or liquid scattered, forming several microns to 100 microns in size of particles, used for air humidifying, granulating, mixing liquid, promote chemical reactions, spraying, molten metal powder etc.By breaking apart aggloomerated particles as they travel down the nozzle body due to continuous ultrasonic vibrations along the length of nozzle, resulting in the most effective use of functional particles.


Technical Parameter:

Frequency:50khz
Power:30w
Spray nozzle shape: Mushroom shape
Diameter of the nozzle:12mm ( generally)
Diameter of the particle:28um


Applications:

Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on. The advantage is that it can atomize various kinds of liquid and it has Large atomizing volume, energy-saving, environmental protection. It has no plug, no abrasion.


Specifications:

Model
HS-N60
HS-N50A
HS-N50B
HS-N50C
HS-N40
HS-N30
HS-N20
HS-N15
Frequency
60KHz
50KHz
50KHz
50KHz
40KHz
30KHz
20 KHz
15 KHz
Atomization Volume
0.5L/H
2 L/H
2 L/H
2 L/H
10 L/H
70 L/H
100 L/H
150 L/H
Average Particle Diameter of Fog
20um
28um
28um
28um
32um
39um
51um
62um
Power Consumption
0.01 Degrees/Kg
0.001 Degrees/Kg
Atomization Head Structure
Cylindrical
Horn
Power
30W
30 W
30 W
30 W
60 W
100 W
300 W
500 W
The Application of Atomizing Media
Ordinary water, a variety of liquid substances, chemical liquid,
a variety of oil mucus, metal melt and so on



Competitive Advantages:

★ A major breakthrough in spray technology, you can spray a variety of liquids.
★ Low power consumption, the fog of great energy saving.
★ No plug, no abrasion, no noise, no pressure, no moving parts.
★ Can be any combination to meet the requirements of the spray volume.
★ The use of high-performance titanium and stainless steel.

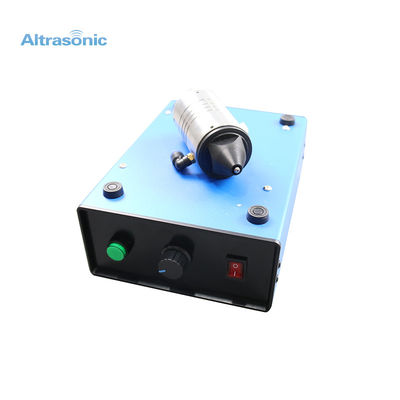

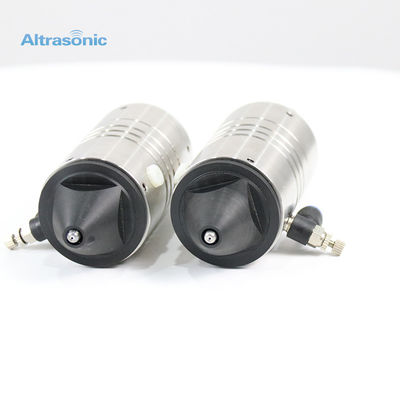

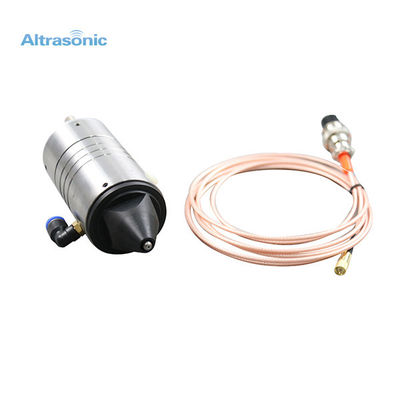

Product display



50KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying 050KHz Ultrasonic Nebulizer System Energy Saving with Large Atomizing Volume for Coating Spraying 1
