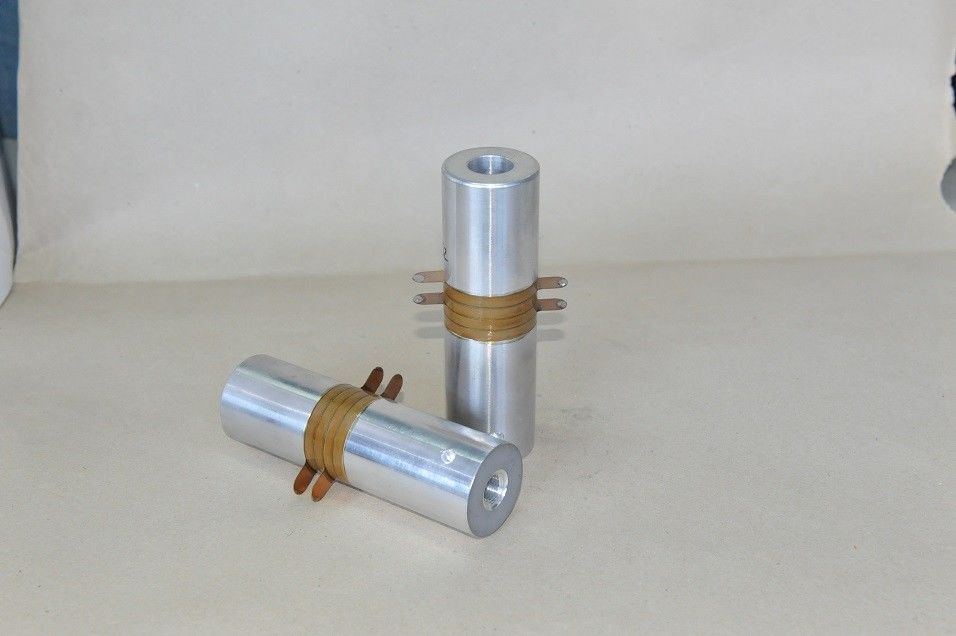

900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter

900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter
900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter 900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter 900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter

Large Image :  900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-4020-4z
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month

900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter

Description
Product Name: Ultrasonic Welding Converter Frequency: 20 Khz
Ceramic Diameter: 40 Mm Capacitance: 9~10 Nf, 9.5~11nf
Power: 900 Watt Application: Welding Machine
Amplitude: 8 Um Ceramic Disc: 4 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
High Light:

ultrasound transducer

,

ultrasonic transducers



900W Power Ultrasonic Converter for Inducing Vibrations in the Mold Platen



Specification:



Model HS-40204z
Frequency 20 khz
Output power 900 watt
Joint bolt 1/2-20unf
Ceramic disc Diameter 40 mm
Quantity of Ceramic discs 4 pcs
Capacitance 9~10 nf, 9.5~11nf
Amplitude 8 um
Application welding machine



Description:



The 4020 4Z Taiwan Type Ultrasonic Transducer is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine. And can be connected with different type welding horn.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Industrial Application :



Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.



What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

900W Power Ultrasonic Converter for Inducing Vibrations in the Mold Platen

900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter 0

900 Watt Piezo Ultrasonic Transducer For Welding Machine , 40mm Ceramic Diameter 1
