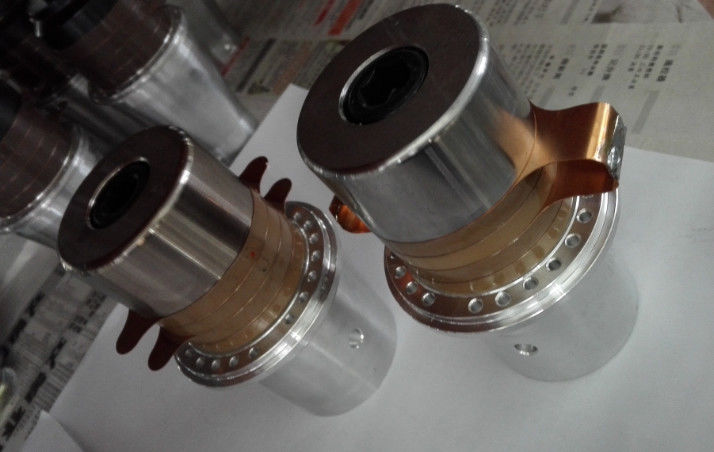

50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder

50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder
50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder 50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder

Large Image :  50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSTL5020-4D
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month

50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder

Description
Product Name: Ultrasonic Converter Frequency: 20 Khz
Ceramic Diameter: 50 Mm Joint Bolt: 1/2-20UNF
Power: 2000-4000watt Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 4 - 6 Pcs
Material: Titanium, Aluminum Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
Highlight:

piezo ultrasonic transducer

,

ultrasonic transducers

50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder



Specifications:



Model

HSTL5020-4D

Frequency

20 khz

Output power

2000 watt - 4000 watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

4 - 6 pcs

Capacitance

Different item No., with different capacitance

Amplitude

20 um

Application

welding machine





Description:



The Replacement Converter for Telsonic, Direct replacement for the 20khz Telsonic machine.

You tell us the brand item No, and we can make it for you according to the brand items' No. or the original samples.

The housing can be custom - made according to your special requirements.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.

Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Applied Range:

Replacement ultrasonic converter for TELSONIC model, for use with 20KHz welding machine.



Competitive Advantage:



1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.





Industrial Application :



20 khz Replacement Ultrasonic Converter for Branson CJ20 , CR20 , 922JA , 902JA , 502 , Welding



50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder 0



50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder 150MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder 2

50MM Diameter Miniature Portable Transducer For Telsonic Ultrasonic Welder 3
