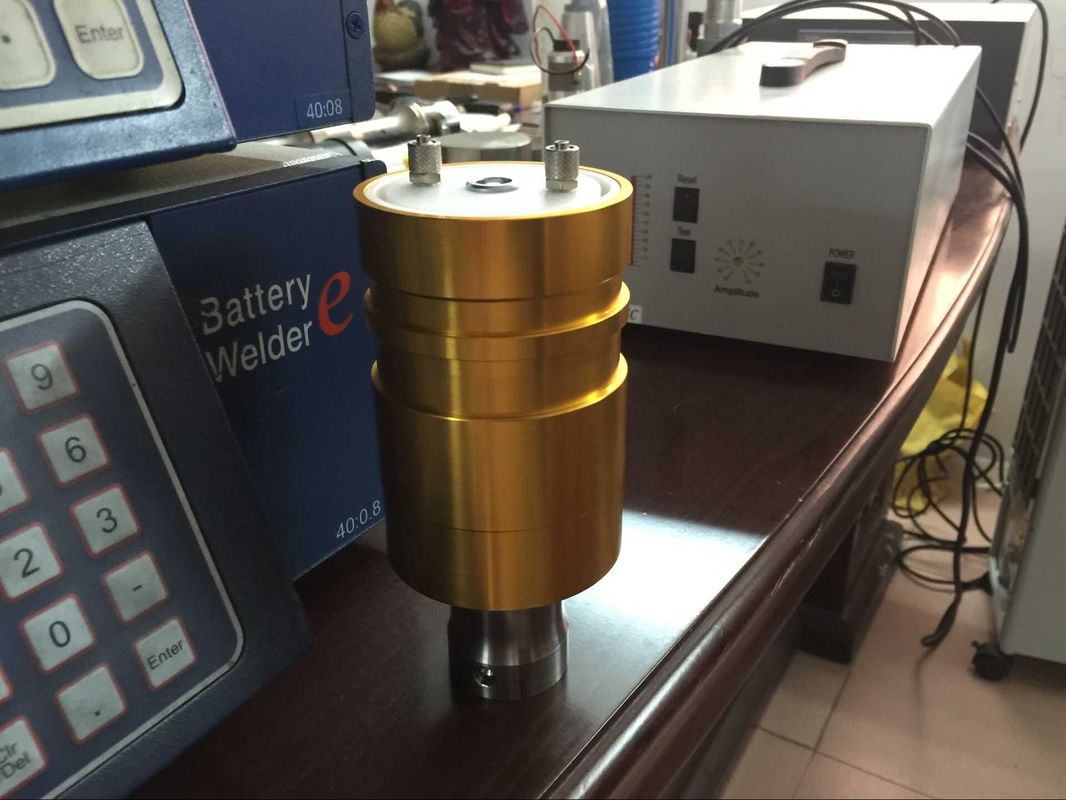

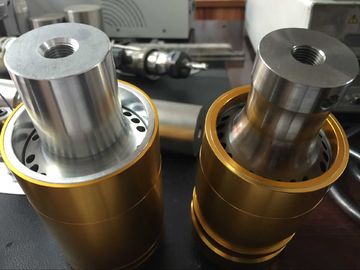

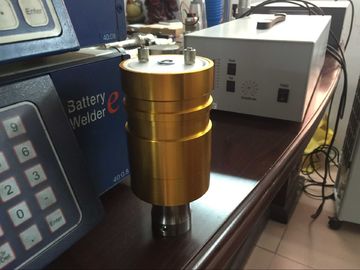

Product Details:
|
Product Name: | Ultrasonic Converter | Frequency: | 20Khz |
---|---|---|---|
Power: | 2000W | Application: | Welding |
Highlight: | piezo ultrasonic transducer,ultrasonic transducers |
Minimum Order Quantity: |
2pcs |
Price: |
negotiation |
Payment Terms: |
T/T |
Supply Ability: |
200pcs per month |
Delivery Time: |
10 working days after received your payment |
Packaging Details: |
Packed in carton, and PE form inside |
Specifications:
MODEL |
FREQUENCY(KHz) |
Ca(pf) |
Power(W) |
Machine |
402 |
19.6-20.0 |
7800-8500 |
450-900 |
BRANSON8400 |
502/922JA |
19.6-20.0 |
11500-12500 |
2000 |
BRANSON8800/5170 |
CJ20 |
19.4-19.7 |
19000-21000 |
1100-4000 |
BRANSON2000 series |
CB35A15A |
36.5-37.5 |
3300-4000 |
800 |
Rinco-35A15A |
CV231 |
38.3-39.0 |
3500-4500 |
900 |
40K Metal welding |
CV3510 |
36.2-37.0 |
3200-4000 |
800 |
Rinco-CV3510 |
110-3122 |
19.6~20.0 |
12500-14000 |
2600 |
Dukane heavy duty |
Info on the 922JA and 502, which is the same driver. On the 922JA they use a board with capacitor and resistor under the cap. On the 502 there is no board.
Description:
1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in
the highest level of power.
4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of
temperature with long life and high reliability.
Applications:
Our transducer can applied in the following ultrasonic machines:
Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.
No O-Rings
