Product Details:
|
| Product Name: | Ultrasonic Converter | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 2000W | Application: | Welding |
| High Light: | ultrasound transducer,piezo ultrasonic transducer |
||
Welding Ultrasonic Converter Boosters , High Frequency Ultrasonic Transducer
|
Minimum Order Quantity: |
2pcs |
|
Price: |
negotiation |
|
Payment Terms: |
T/T |
|
Supply Ability: |
200pcs per month |
|
Delivery Time: |
10 working days after received your payment |
|
Packaging Details: |
Packed in carton, and PE form inside |
Specifications:
|
MODEL |
FREQUENCY(KHz) |
Ca(pf) |
Power(W) |
Machine |
|
402 |
19.6-20.0 |
7800-8500 |
450-900 |
BRANSON8400 |
|
502/922JA |
19.6-20.0 |
11500-12500 |
2000 |
BRANSON8800/5170 |
|
CJ20 |
19.4-19.7 |
19000-21000 |
1100-4000 |
BRANSON2000 series |
|
CB35A15A |
36.5-37.5 |
3300-4000 |
800 |
Rinco-35A15A |
|
CV231 |
38.3-39.0 |
3500-4500 |
900 |
40K Metal welding |
|
CV3510 |
36.2-37.0 |
3200-4000 |
800 |
Rinco-CV3510 |
|
110-3122 |
19.6~20.0 |
12500-14000 |
2600 |
Dukane heavy duty |

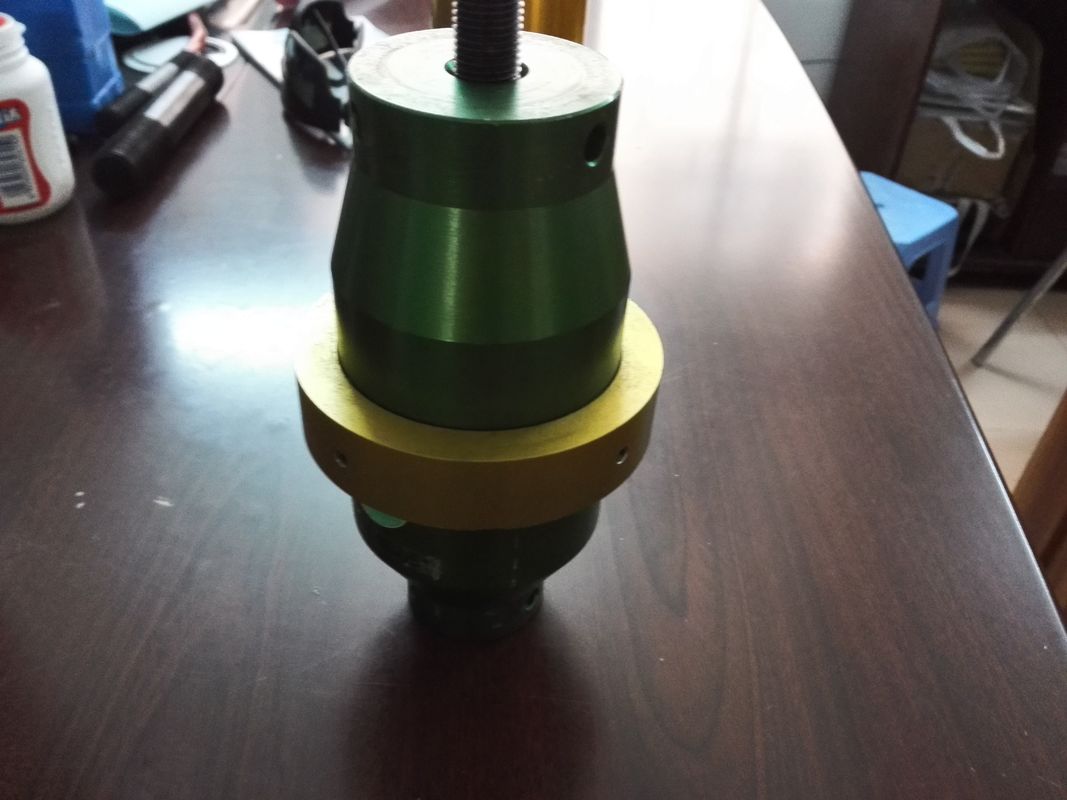

This Ultrasonic Green Booster was also acquired from an estate sale. There is visual evidence of it being mounted at least once. Since it has no signs of abuse, I repacked to protect the unit. When it comes to shipping, I will use additional packing protection. According to Branson's Technical publications, all Booster units are color coded so I'll let the photos do the talking. I have no other documentation with the unit.
Available in Aluminum or Titanium in STOCK! For use on Branson & Dukane ultrasonic welders!
Description:

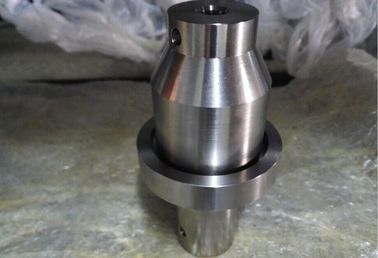

The ultrasonic booster is typically a tuned half wave component shaped so that it increases or decreases amplitude passed between the converter (transducer) and sonotrode (horn). The amount of increase or decrease in amplitude is referred to as gain.
Amplitude is the peak-to-peak distance traveled by any particular point on a vibrating item in one sound wave cycle. When referring to ultrasonic plastic welders, amplitude usually refers to a point at the working face or output surface of a tooling component.
A booster has differing mass on the input and output ends, and this difference in mass is controlled such that each booster has a particular gain ratio. The common parlance is to state the gain of a booster that increases amplitude as ultrasound passes through it with a number greater than one, and that of a booster that reduces amplitude with a number less than one.
A booster having no effect on amplitude is referred to as having gain of 1.0. A booster that doubles amplitude has a gain of 2.0, while one that cuts amplitude in half has a gain of 0.5.
Boosters of the type offered below have a fixed length specification from input surface to mounting ring. The distance from mounting ring to output surface varies by the stiffness of the particular material that particular booster is mad from-- stiffer lots of material will yield boosters that are longer than softer material yields. This is because boosters are tuned to run at a particular frequency, not made to a particular length dimension.
Boosters that are properly designed will produce negligible heat while running, indicating that energy losses in transmission and efficiency losses at the mounting ring are very low. The boosters offered below are comparable to or better than most OEM boosters in this regard
Applications:
For frequency values of 20, 30, and 35 kHz ultrasonic boosters with different gain ratios (transformation) are available. All ultrasonic boosters are made of high-quality titanium. Depending on the required demands, they are installed using rigid or flexible support rings.
Competitive Advantage:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.
