Product Details:
|
Product Name: | Ultrasonic Converter | Frequency: | 20 Khz |
---|---|---|---|
Ceramic Diameter: | 50 Mm | Capacitance: | 19-21 Nf |
Power: | 4000watt | Application: | Welding Machine |
Amplitude: | 20 Um | Ceramic Disc: | 6 Pcs |
Material: | Titanium, Aluminum Materials Optional | Protective Housing: | Aluminum And Stainless Steel Optional |
High Light: | ultrasound transducer,piezo ultrasonic transducer |

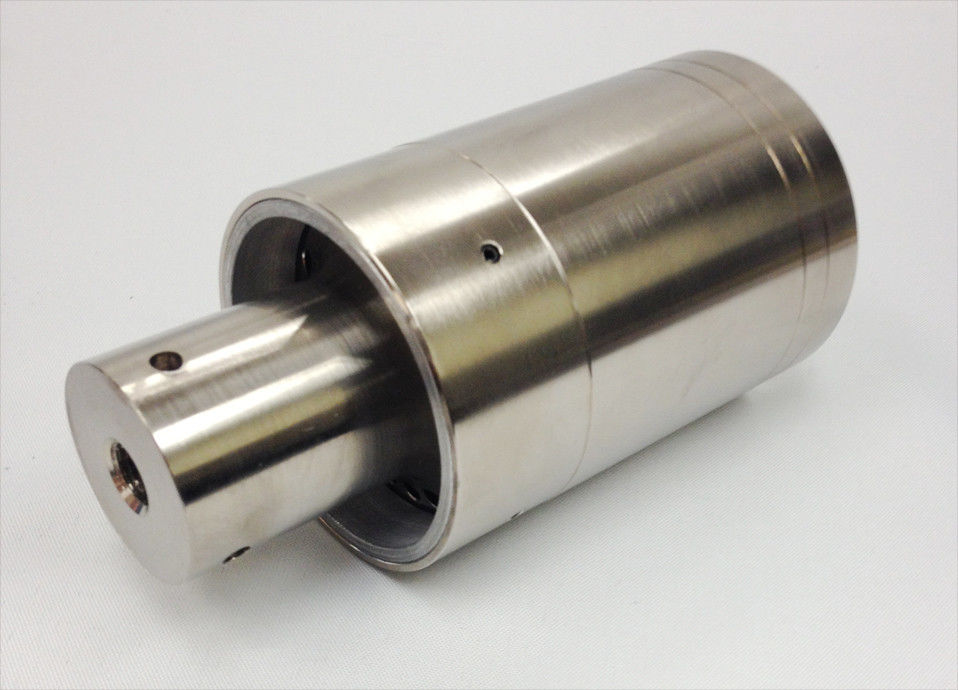

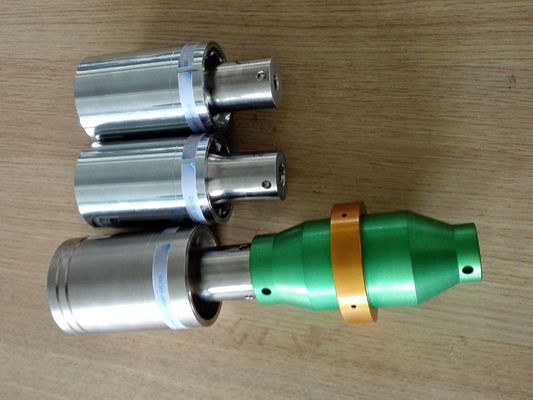

High Power Ultrasound Transducer With Stainless Steel / Aluminum Housing
Specifications:
Model |
HSBCJ20 |
Frequency |
20 khz |
Output power |
4000 watt |
Joint bolt |
1/2-20 UNF |
Ceramic disc Diameter |
50 mm |
Quantity of Ceramic discs |
6 pcs |
Capacitance |
19-21 nf |
Amplitude |
20 um |
Application |
welding machine |
Description:
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Competitive Advantage:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Industrial Application :
2000 Watt 20 KHz Ultrasonic Converter Applied In Welding Machine , Replacement Branson
