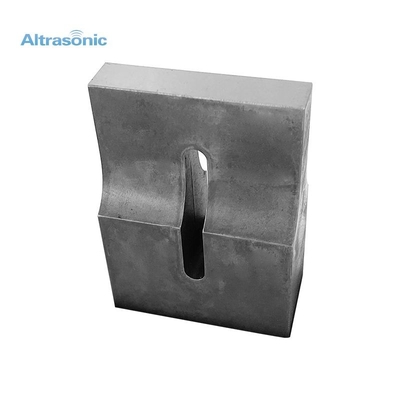

20kHZ 110*20mm Steel Horn For Welding System Fabric Welding

20kHz 110*20mm steel horn for welding system fabric welding

Specification:

Description:

The ultrasonic welding horn is a vital component in ultrasonic welding processes, as it is responsible for transmitting ultrasonic vibrations and creating a durable bond between materials. It is typically constructed using high-quality steel or titanium, which can withstand high-frequency vibrations. The design of the horn is meticulously engineered to ensure optimal energy transfer to the workpiece. It is connected to an ultrasonic welding machine, which generates high-frequency vibrations that are amplified and focused onto the workpiece by the horn. The vibrations, along with the heat and pressure generated, soften the materials and facilitate their bonding. The design of the ultrasonic welding horn can vary to meet specific requirements, with different shapes and surface patterns. Furthermore, the horn also plays a critical role in controlling the welding process, as its length, thickness, and geometry can be adjusted to achieve optimal welding parameters. By properly controlling these parameters, manufacturers can consistently produce strong and high-quality welds in various industries.

Application:

1. Concentrates Vibrations: The welding horn is designed to concentrate the high-frequency vibrations generated by the ultrasonic transducer. This concentration allows for precise and efficient energy transfer to the parts being welded.

2. Amplifies Energy: By amplifying the vibrations, the welding horn enhances the welding energy output. This amplification ensures robust and strong welds, even for materials with high melting points or challenging geometries.

3. Directs Energy: The horn's shape and design direct the generated ultrasonic energy towards the weld line, ensuring optimal application and minimizing energy loss. It helps in achieving consistent weld quality and minimizing defects.

Advantages:

1. Design: The first step in the production process is the design of the Ultrasonic Welding Horn. This involves determining the shape, size, and material of the horn based on the specific requirements of the application.

2. Material selection: Once the design is finalized, the appropriate material for the Ultrasonic Welding Horn is selected. The material needs to have good acoustic properties and high strength to withstand the high-frequency vibrations during welding.

3. Machining: The selected material is then machined to create the desired shape of the Ultrasonic Welding Horn. Machining processes like milling, turning, and drilling are used to remove excess material and create the final shape.
