Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement

Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement
Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement

Large Image :  Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-B902
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: carton
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 200 pcs per month

Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement

Description
Product Name: High Power 20Khz Ultrasonic Welding Transducer Replacement Of Branson 902 Power: 1000W
Ceramic Diameter: 40 Mm Amplitude: 20 Um
Finish: Depending On Customer's Requirements Frequency: 20Khz
Connect Screw: 1/2-20UNF
High Light:

Branson 902 Replacement 20Khz Transducer

,

20Khz Ultrasonic Welding Transducer 1000W

,

40Mm Ceramic 20 Khz Transducer

Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement



Description:



Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.



For the Replacement Converter for Branson 902,

Directly replaces Branson model 902J Converter as used in 905 and 910 IW, IW+, AE, AES and AO actuator and IW machines.

You tell us the brand Item No, and we can make it for you according to the brand items' No. or the original samples.

The housing can be custom - made according to your special requirements.



Specifications:



Model HS-B902
Frequency 20 khz
Output power 1100 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 40 mm
Quantity of Ceramic discs 4 pcs
Capacitance 20nF
Amplitude 10 um
Application

welding machine







Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries :

automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,packing, office supplies, toys, etc.

Applied Machines :

Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

Detailed Images:

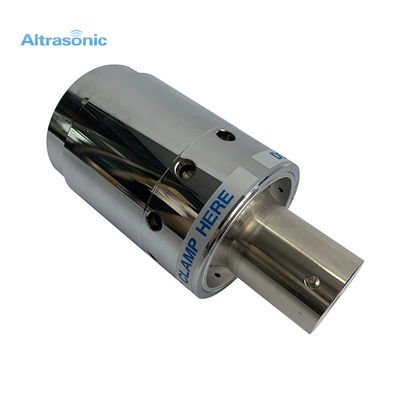

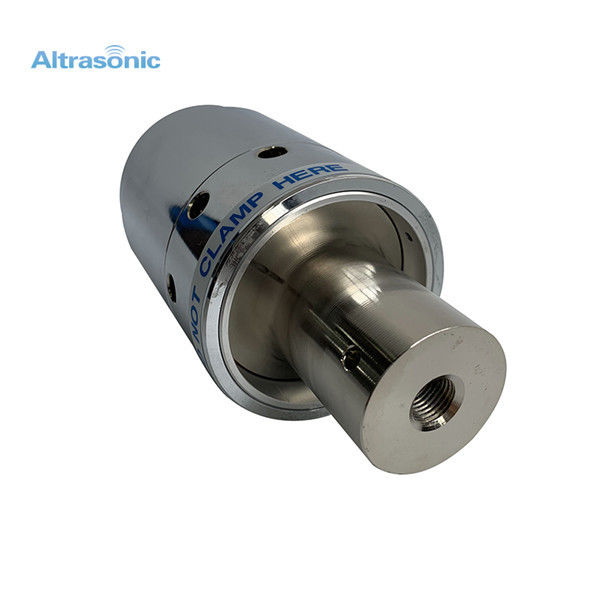

Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement 0                                   Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement 1

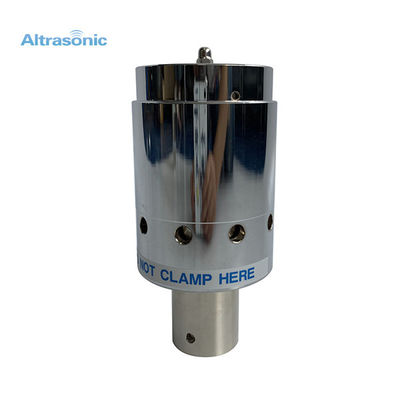

Branson 902 Power 20Khz Ultrasonic Welding Transducer Replacement 2
