Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| Function: | Cleaning | Usage: | Piezoceramic Transducers |
| High Light: | 42Khz PZT Ceramic Chip,42Khz Piezoceramic Transducers,PZT Piezoceramic Transducers |
||

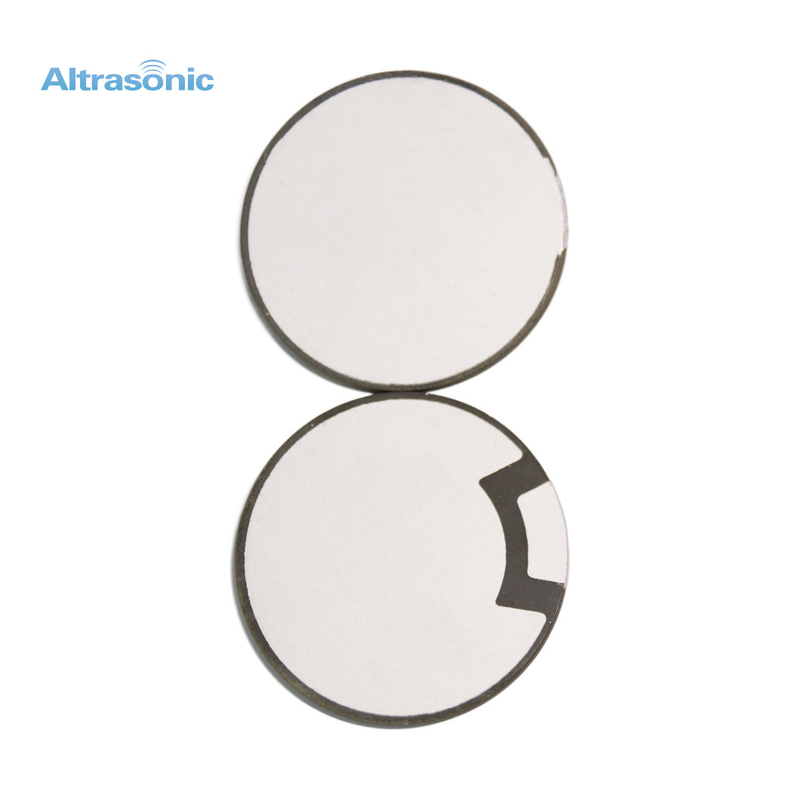

42Khz PZT Ceramic Chip Piezoceramic Transducers Plate Disc
Description:
Piezoceramic Transducers are categorized as functional ceramics. In sensors they make it possible toconvert forces,
pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric
voltages into vibrations or deformations.PiezoelectricCeramics materials are classified according to their chemical composition
Specifications:
| Material | Sizes(MM) OD*ID*Thickness | Capacitance (pF) | Frequency (kHz) |
Dielectric dissipation factor tgδ(%) | Coupling factor Kp (%) | Qm |
| P31 Ceramic Rings | φ15*6X2 | 1080 | 92 | 0.4 | 60 | 80 |
| P43 Ceramic Rings | φ4*φ2*2.5 | 45 | 347 | 0.3 | 60 | 1000 |
| φ10*φ5*2 | 350 | 145 | 0.3 | 60 | 1000 | |
| φ20*φ10*5 | 1000 | 50.9 | 0.3 | 60 | 1000 | |
| φ25*φ10*5 | 1000 | 62.5 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*5 | 1000 | 60 | 0.37 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 61 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*3 | 1650 | 61.8 | 0.3 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 60 | 0.3 | 60 | 1000 | |
| φ30*φ12*5 | 1400 | 51 | 0.31 | 60 | 1000 | |
| φ30*φ12*4.5 | 1350 | 53.5 | 0.32 | 60 | 1000 | |
| φ30*φ8*5 | 1550 | 56.5 | 0.35 | 60 | 1000 | |
| φ32*φ9.5*6 | ||||||
| φ35*φ15*5 | 1905 | 43.6 | 0.3 | 60 | 1000 | |
| φ35*φ15*5.5 | 1760 | 42 | 0.36 | 60 | 1000 | |
| φ36*φ10*4.5 | 2537 | 47.5 | 0.34 | 60 | 1000 | |
| φ38*φ15*5 | 2370 | 40.7 | 0.3 | 60 | 1000 | |
| φ38*φ15*6 | 2000 | 41 | 0.35 | 60 | 1000 | |
| φ38*φ13*6.35 | 1900 | 43 | 0.32 | 60 | 1000 | |
| φ38*φ15*6.35 | 1870 | 40.8 | 0.3 | 60 | 1000 | |
| φ45*φ15*5 | 3500 | 37.5 | 0.42 | 60 | 1000 | |
| φ45*φ15*6.35 | ||||||
| φ50*φ17*5 | 4400 | 32 | 0.32 | 60 | 1000 | |
| φ50*φ17*6.5 | 3300 | 32.8 | 0.3 | 60 | 1000 | |
| φ50*φ20*3 | ||||||
| φ50*φ20*6 | 3400 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*6.5 | 3200 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*7 | 2900 | 31 | 0.3 | 60 | 1000 | |
| φ60*φ30*10 | 2500 | 23.8 | 0.3 | 60 | 1000 | |
| φ65*φ30*10 | 3000 | 22.7 | 0.3 | 60 | 1000 |
Product Advantages:
1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay
