Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| Function: | Cleaning | MOQ: | 1 Pcs |
| High Light: | 150Khz Piezo Ceramic Ring,Ultrasonic Piezoelectric Ceramic Ring,Ultrasonic Piezo Ceramic Ring |
||

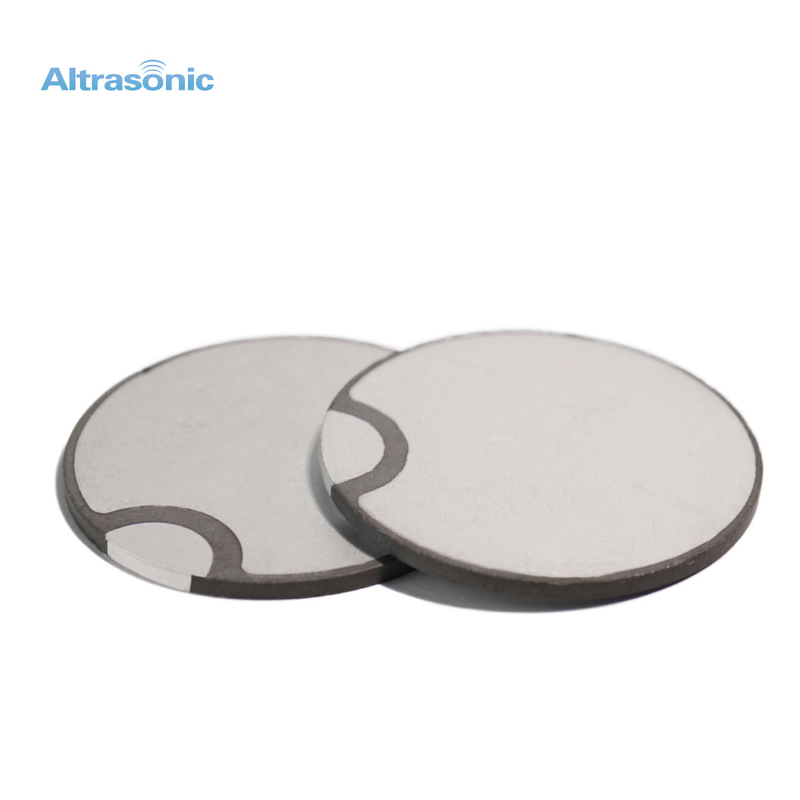

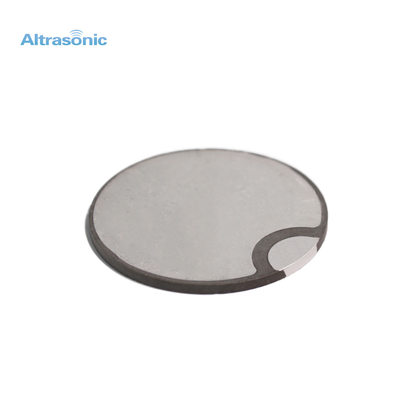

φ60*φ30*10 Slow Performance decay Ultrasonic PZT Ceramic Rings For Ultrasonic Cleaning Wishing Machines
Description:
Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction.
Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.
Sepcification:
| Material | Sizes(MM) OD*ID*Thickness | Capacitance (pF) | Frequency (kHz) |
Dielectric dissipation factor tgδ(%) | Coupling factor Kp (%) | Qm |
| P31 Ceramic Rings | φ15*6X2 | 1080 | 92 | 0.4 | 60 | 80 |
| P43 Ceramic Rings | φ4*φ2*2.5 | 45 | 347 | 0.3 | 60 | 1000 |
| φ10*φ5*2 | 350 | 145 | 0.3 | 60 | 1000 | |
| φ20*φ10*5 | 1000 | 50.9 | 0.3 | 60 | 1000 | |
| φ25*φ10*5 | 1000 | 62.5 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*5 | 1000 | 60 | 0.37 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 61 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*3 | 1650 | 61.8 | 0.3 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 60 | 0.3 | 60 | 1000 | |
| φ30*φ12*5 | 1400 | 51 | 0.31 | 60 | 1000 | |
| φ30*φ12*4.5 | 1350 | 53.5 | 0.32 | 60 | 1000 | |
| φ30*φ8*5 | 1550 | 56.5 | 0.35 | 60 | 1000 | |
| φ32*φ9.5*6 | ||||||
| φ35*φ15*5 | 1905 | 43.6 | 0.3 | 60 | 1000 | |
| φ35*φ15*5.5 | 1760 | 42 | 0.36 | 60 | 1000 | |
| φ36*φ10*4.5 | 2537 | 47.5 | 0.34 | 60 | 1000 | |
| φ38*φ15*5 | 2370 | 40.7 | 0.3 | 60 | 1000 | |
| φ38*φ15*6 | 2000 | 41 | 0.35 | 60 | 1000 | |
| φ38*φ13*6.35 | 1900 | 43 | 0.32 | 60 | 1000 | |
| φ38*φ15*6.35 | 1870 | 40.8 | 0.3 | 60 | 1000 | |
| φ45*φ15*5 | 3500 | 37.5 | 0.42 | 60 | 1000 | |
| φ45*φ15*6.35 | ||||||
| φ50*φ17*5 | 4400 | 32 | 0.32 | 60 | 1000 | |
| φ50*φ17*6.5 | 3300 | 32.8 | 0.3 | 60 | 1000 | |
| φ50*φ20*3 | ||||||
| φ50*φ20*6 | 3400 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*6.5 | 3200 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*7 | 2900 | 31 | 0.3 | 60 | 1000 | |
| φ60*φ30*10 | 2500 | 23.8 | 0.3 | 60 | 1000 | |
| φ65*φ30*10 | 3000 | 22.7 | 0.3 | 60 | 1000 |
Product Advantages:
1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay
