Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| High Light: | Ultrasound Atomizer Piezoelectric Ceramic Sheet,Ultrasonic Piezoelectric Ceramic Sheet,Piezoelectrical Ceramic Sheet |
||
Ceramic atomizing tablet Ultrasonic Piezoelectrical Ceramic Sheet For Ultrasound Atomizer
Description:
Ceramic atomizing tablets can be divided into two different categories, namely solid-hole atomizing tablets and micro-porous atomizing tablets. In terms of current, because the frequency of solid-hole atomizing tablets is relatively large, due to its vibration frequency Larger, so the current that drives it needs to be larger. The micro-porous atomizing sheet is generally kHz frequency.
Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.
| Products | Sizes | Resonant Frequency (MHz) | ResonantImpedance(R) | Capacitance (pF) | Dielectric dissipation factor tgδ(Kt) | Fog output(ml/h) | Life time(Hour) |
| High frequency atomizer | 16-1.7BU | 1.70±0.05 | ≤3 | 1000±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 16-2.4BU | 2.45±0.1 | ≤2 | 750±20% | ≥0.45 | 200 | 3000 |
| High frequency atomizer | 16-3BU | 3.0±0.2 | ≤3 | 900±20% | ≥0.45 | 100 | 3000 |
| High frequency atomizer | 20-1.7BU | 1.70±0.05 | ≤3 | 1500±20% | ≥0.45 | 300 | 5000 |
| High frequency atomizer | 20-2.4BU | 2.45±0.1 | ≤2 | 1450±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 20-3BU | 3.0±0.2 | ≤1 | 1600±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 25-1.7BU | 1.66±0.05 | ≤3 | 1700±20% | ≥0.45 | 400 | 5000 |
| High frequency atomizer | 25-2.4BU | 2.4±0.1 | ≤1 | 1800±20% | ≥0.45 | 400 | 5000 |
| Products | Sizes | Resonant Frequency (MHz) | ResonantImpedance(R) | Capacitance (pF) | Input Voltage(VDC) | Rated Power (W) | Max output Power (W) |
| Low frequency atomizer | 16-108K | 108±6KHz | ≤350 | 3100±25% | 3~12 | 1.3~2.2 | 2 |
| Low frequency atomizer | 16-115k | 115±5KHz | ≤350 | 3000±25% | 3~12 | 1.3~1.8 | 2 |

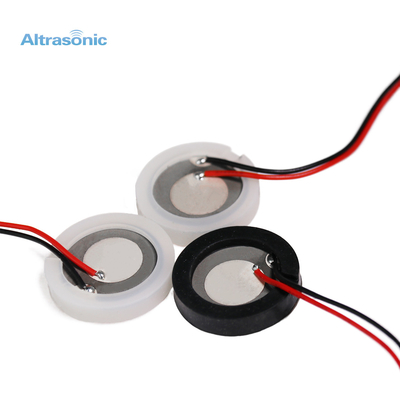

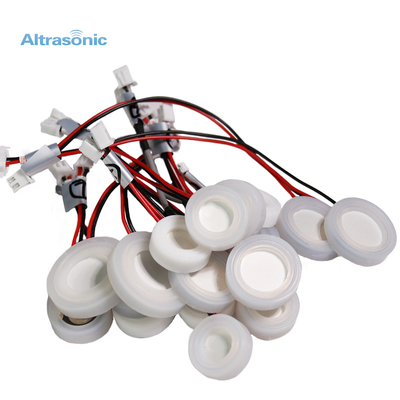

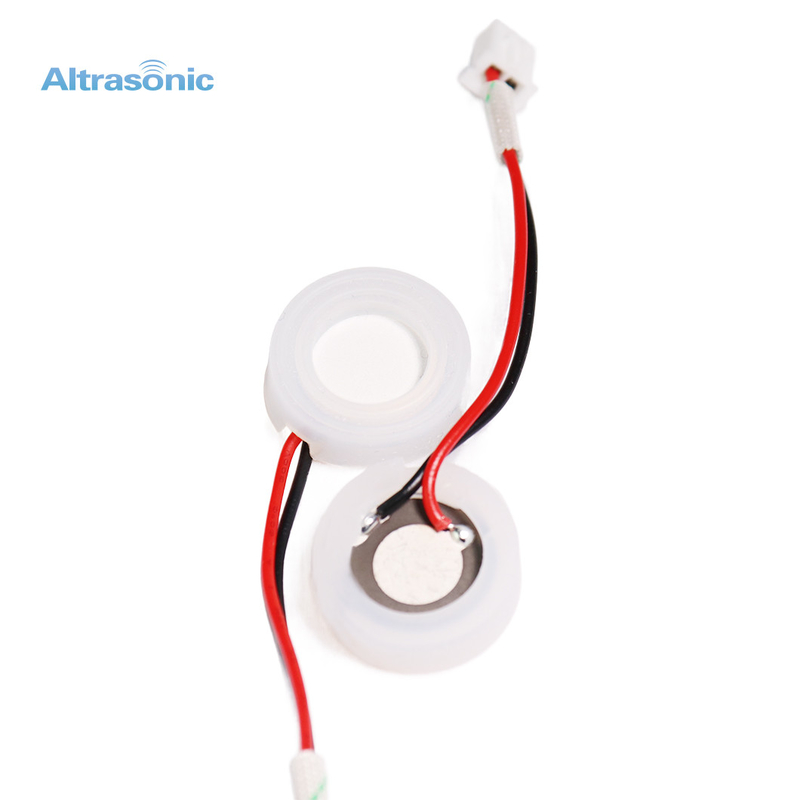

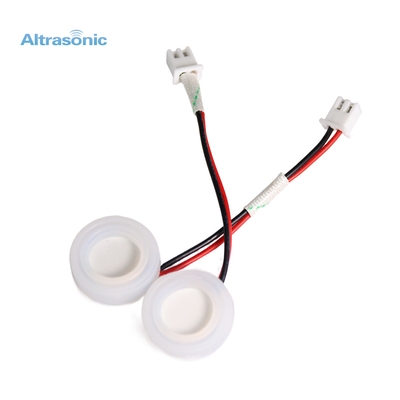

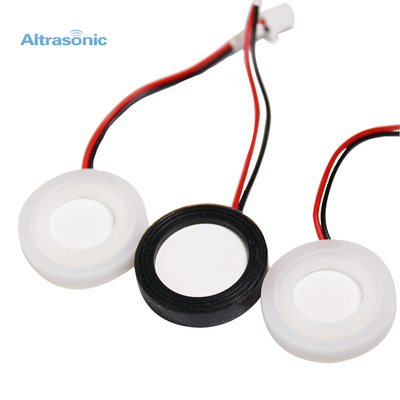

Pictures:
Product Advantages:
1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay
FAQ:
Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together. Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
