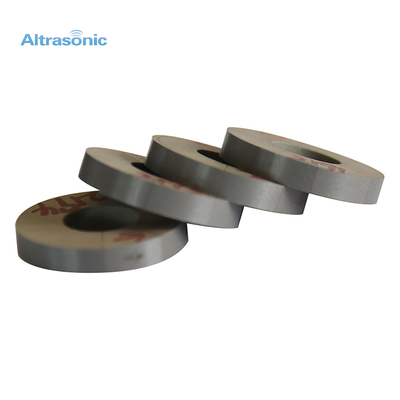

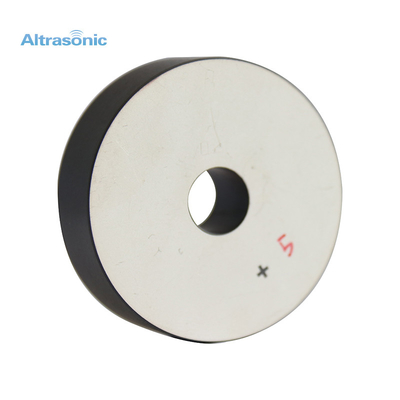

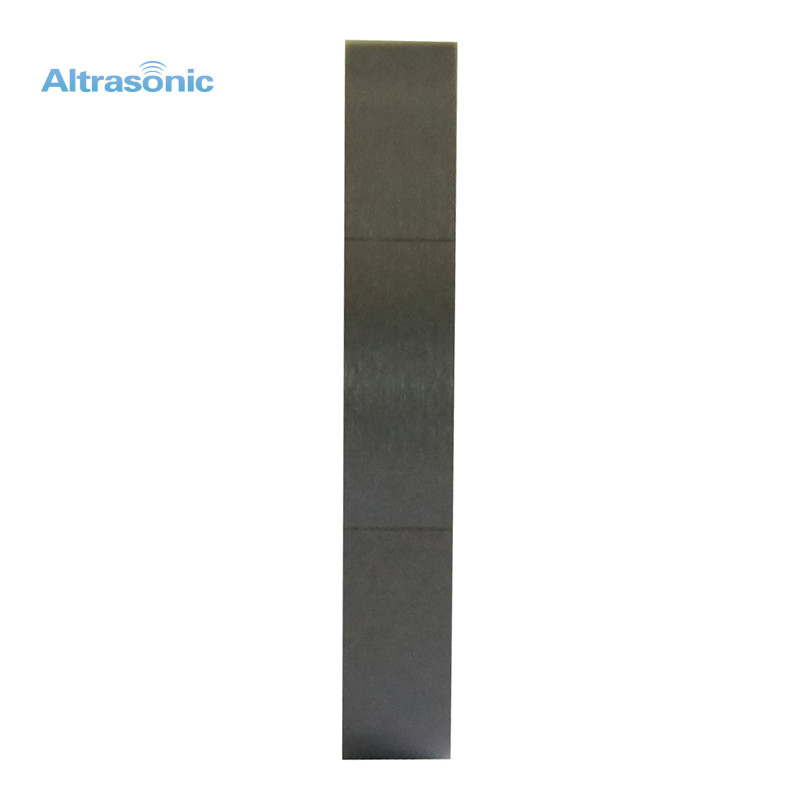

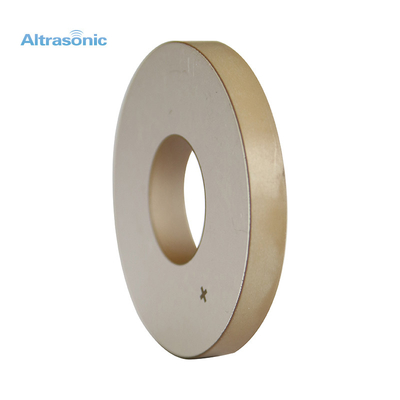

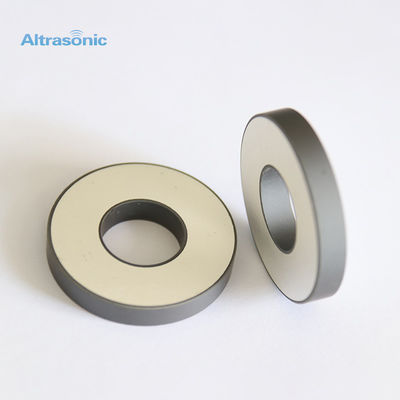

Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83

Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83
Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83

Large Image :  Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 weekdays after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 350000 units per month
Contact Now

Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83

Description
Frenquency: 20Khz Shipping: TNT DHL UPS FEDEX
Color: Yellow Warranty: 1 Year
Highlight:

50MM Piezoelectric Ceramic Ring

,

35MM Piezoelectric Ceramic Ring

,

20Khz Piezo Ceramic Ring

Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83



Description:



Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction.


Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.





Sepcification:





Sizes(MM) Frequency(Khz) Capacitance(±12.5%)pF Tanδ(%) Kr QM
50*17*5 34.8 3160 ≤0.3 ≥0.55 800
50*20*6 33.5 2490 ≤0.3 ≥0.46 800
50*17*6.5 34.8 3280 ≤0.3 ≥0.55 800
50*23*6 32.1 2340 ≤0.3 ≥0.46 800
50*27*6 29 2100 ≤0.3 ≥0.47 800



Application:



As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.



Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 0Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 1Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 2








Related Products:



Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 3

Package:



Piezo Piezoelectric Ceramic Ring Ultrasonic Milling Transducer 50MM 35MM P83 4

Tag:

ultrasonic plastic welding machine,

ultrasonic spot welding machine,

50MM Piezoelectric Ceramic Ring
