Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W

Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W
Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W

Large Image :  Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-2030F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 15 days after receiving from the payment
Payment Terms: Western Union , L/C, T/T
Supply Ability: 3000 PCS per month

Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W

Description
Frequency: 20kHz Power: 2000W
Pipe Diameter: Φ6-8mm Thickness: <1mm
Working Air Pressure: 0.05-0.09MPa Usage: Copper Tube Welding
High Light:

Automatic Calibration Ultrasonic Metal Welder

,

220V Ultrasonic Metal Welder

20kHz 3000W Copper Tube Sealing Device Ultrasonic Metal Welding Machine



Description:



Ultrasonic welding uses high-frequency vibration waves to transmit to the surfaces of two objects to be welded. Under pressure, the surfaces of the two objects are rubbed against each other to form fusion between the molecular layers.



Specification:



   Model
HS-2030F
Power
3000W
Pipe diameter
Φ2-12mm
Working air pressure
0.05-0.09MPa
Ultrasonic frequency
20KHZ
Working voltage
220V



Applications:



1. Air conditioning HVAC system and refrigerator copper pipe sealing.



2. Capillary and bulb temperature sensor.



3. Products that require sealing and welding of copper or aluminum pipes.



4. Diameter of weldable metal pipe: 2~12mm.



Advantages:



1. Ultrasonic copper tube sealing machine is suitable for sealing copper tubes such as medicine, cosmetics, health products, food, lubricating oil, toothpaste, shoe polish, facial cleanser, glue, etc.


2. The ultrasonic copper tube tail sealing machine adopts the Taiwan core circuit, and uses the ultrasonic principle to seal the tail of the copper tube and the composite tube. It has good working stability, high efficiency and superior performance of each component.


3. The ultrasonic copper tube sealing machine has a small appearance, humanized design, and easy operation.


4. Simple operation, convenient assembly and maintenance.


5. The ultrasonic copper tube sealing machine can store 9 sets of parameters for production according to different products.


6. Automatic calibration frequency function of ultrasonic copper tube sealing machine.


7. Electronic voltage stabilization function.


8. Digitally control the amplitude with an accuracy of +/- 1μm.



Pictures:

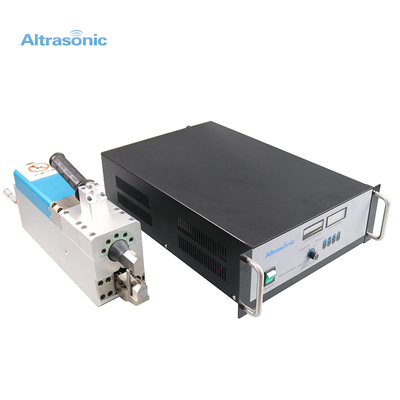

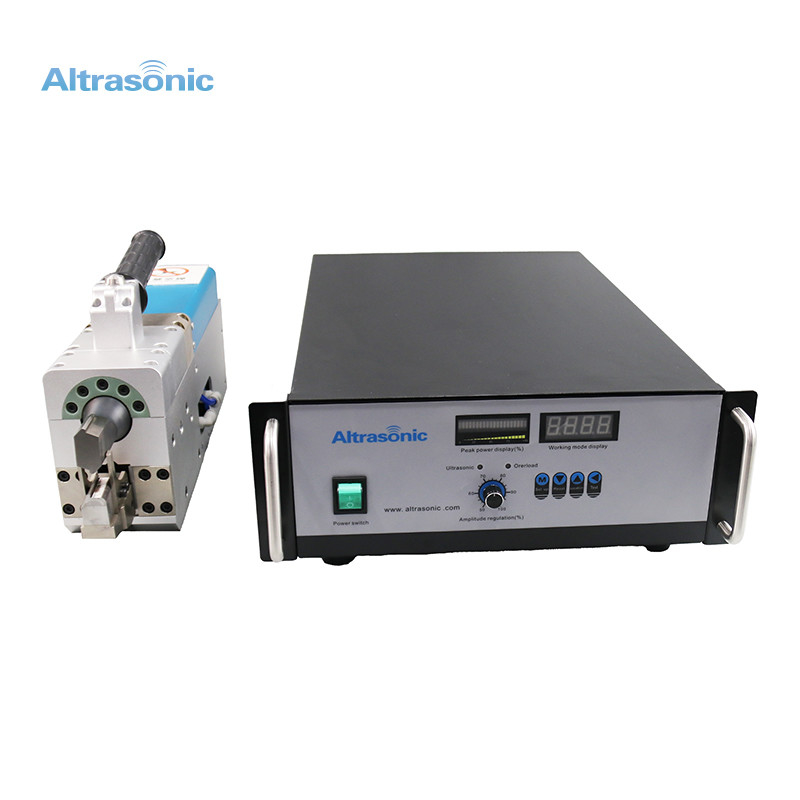

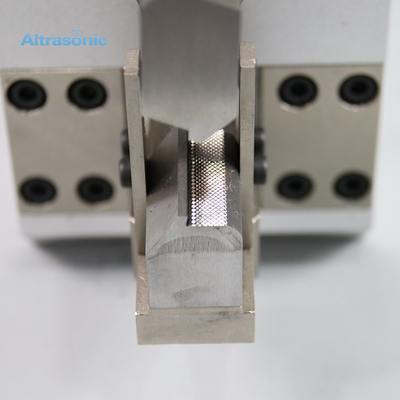

Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W 0Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W 1Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W 2
