Mechanical Ultrasonic Metal Welding Machine 20kHz 3kW

Description
Frequency: 20kHz Power: 2000W
Pipe Diameter: Φ6-8mm Thickness: <1mm
Working Air Pressure: 0.05-0.09MPa Usage: Copper Tube Welding
High Light:

Mechanical Ultrasonic Metal Welding Machine

,

HVAC Ultrasonic Metal Welding Machine

Ultrasonic Metal Welding Machine For Copper Tube Sealing 20kHz 3000W



Description:



Ultrasonic metal welding is a mechanical treatment process. During the welding process, no current flows through the welded parts, and no welding arc such as electric welding mode is generated. Since ultrasonic welding does not have problems such as heat conduction and resistivity, it is necessary to For metal materials, it is undoubtedly an ideal metal welding equipment system, which can effectively weld sheets of different thicknesses.



Specification:



   Model
HS-2030F
Power
3000W
Pipe diameter
Φ2-12mm
Working air pressure
0.05-0.09MPa
Ultrasonic frequency
20KHZ
Working voltage
220V



Applications:



1. Air conditioning HVAC system and refrigerator copper pipe sealing.



2. Capillary and bulb temperature sensor.



3. Products that require sealing and welding of copper or aluminum pipes.



4. Diameter of weldable metal pipe: 2~12mm.



Advantages:



1. Ultrasonic copper tube sealing machine is suitable for sealing copper tubes such as medicine, cosmetics, health products, food, lubricating oil, toothpaste, shoe polish, facial cleanser, glue, etc.


2. The ultrasonic copper tube tail sealing machine adopts the Taiwan core circuit, and uses the ultrasonic principle to seal the tail of the copper tube and the composite tube. It has good working stability, high efficiency and superior performance of each component.


3. The ultrasonic copper tube sealing machine has a small appearance, humanized design, and easy operation.


4. Simple operation, convenient assembly and maintenance.


5. The ultrasonic copper tube sealing machine can store 9 sets of parameters for production according to different products.


6. Automatic calibration frequency function of ultrasonic copper tube sealing machine.


7. Electronic voltage stabilization function.


8. Digitally control the amplitude with an accuracy of +/- 1μm.



Pictures:

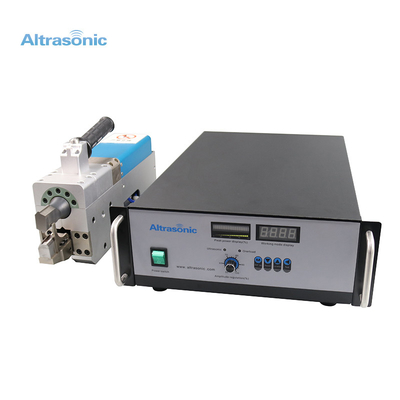

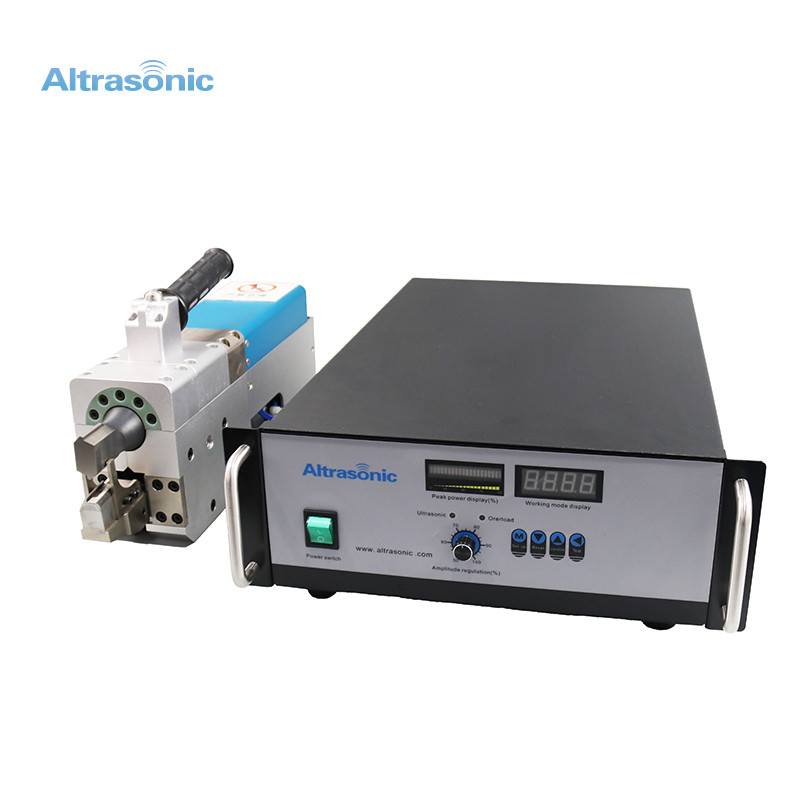

Mechanical Ultrasonic Metal Welding Machine 20kHz 3kW 0

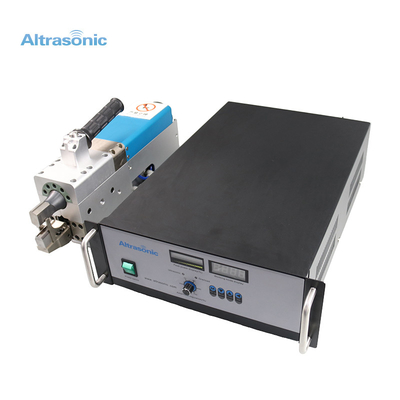

Mechanical Ultrasonic Metal Welding Machine 20kHz 3kW 1
