20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe

20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe
20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe 20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe 20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe

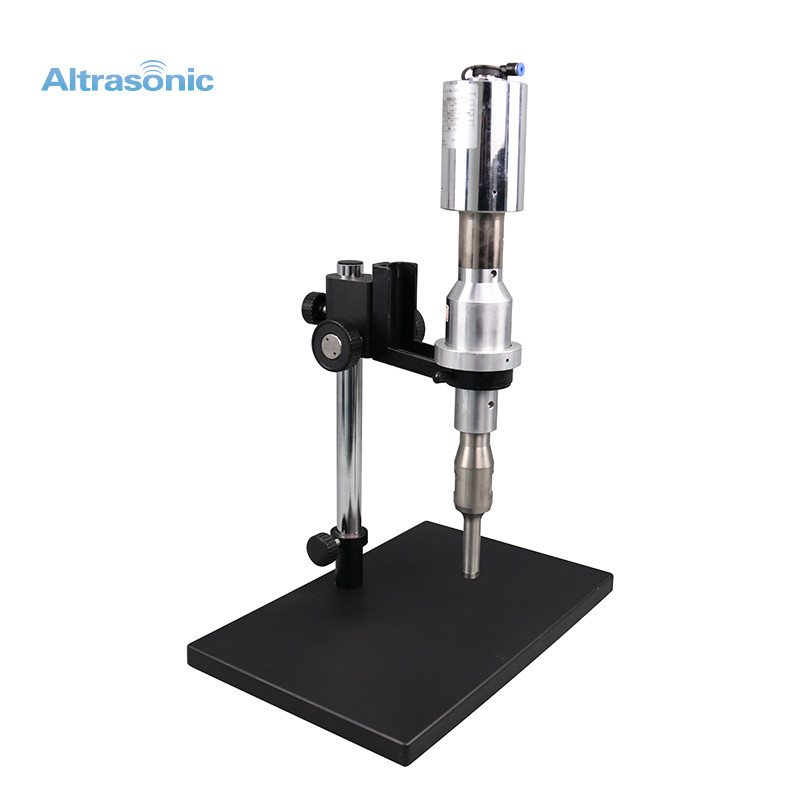

Large Image :  20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-S20-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 15 days after receiving from the payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 PCS per month

20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe

Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 500W Weight: 16Kg
Generator: Digital Mode Control: Remote Control
Application: Extraction, Dispersing, Emulsifying Matetail Of Probe: Titanium Alloy
Max Capacity: More Than 500ml/Min Intensity Of Sound: More Than 10W/cm²
Origin: China
High Light:

Ultrasonic Homogenizer 20k

,

500 Watt Ultrasonic Homogenizer

,

Ultrasonic Sonochemistry Digital Mode

20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe



20kHz 500w Ultrasonic Liquid mixing device Homogenizer machine device


Description:

Ultrasonic homogenizer uses the cavitation and other physical effects of ultrasonic waves in the liquid to achieve the homogenization effect. The physical effect means that ultrasonic waves can form effective agitation and flow in the liquid to destroy the structure of the medium and pulverize the particles in the liquid, mainly due to the collision between liquids, microphase flow and shock waves.

Specifications:



Model HSS20-500 HSS20-1000-L HSS20-1000 HSS20-1500 HSS20-2000 HSS20-3000
Frequency 20Khz 20Khz 20Khz 20Khz 20Khz 20Khz
Power 500 W 1000 W 1000 W 1500W 2000W 3000 W
Voltage 220V 220V 220V 220V 220V 220V
Temperature 150 ℃ 150 ℃ 150 ℃ 300℃ 300℃ 300 ℃
Pressure Normal Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max capacity > 500ml/Min > 2 L/Min > 5L/Min > 15L/Min > 20L/Min > 100 L/Min
Material of probe Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy


Applications:


Ultrasonic Homogenizer is the use of physical technology to produce a series of extreme extreme conditions in the medium of chemical reaction. This energy can not only stimulate or promote many chemical reactions, speed up chemical reactions, but also change the direction of chemical reactions and produce some effects. Ultrasonic homogenizer can be applied to almost all chemical reactions, such as extraction and separation, synthesis and degradation, biodiesel production, treatment of microorganisms, degradation of toxic organic pollutants, biodegradation treatment, biological cell crushing, homogenization and agglomeration, powder Homogenization of materials, emulsification of liquid materials, such as sufficient stirring and homogenization of ink materials, so that the main components of lithium batteries can be uniformly homogeneous into the liquid medium, and so on.


Advantages:

1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.



Pictures:

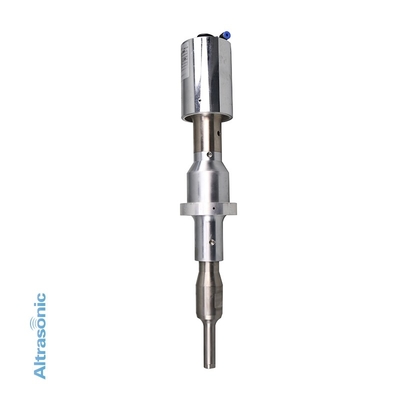

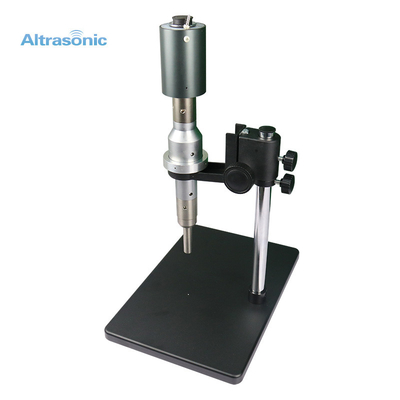

20kHz 500 Watt Ultrasonic Homogenizer With Titanium Alloy Probe 0
