Product Details:
|
| Name: | Ultrasonic Sonochemistry | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 500W | Weight: | 16Kg |
| Generator: | Digital Mode | Control: | Remote Control |
| Application: | Extraction, Dispersing, Emulsifying | Matetail Of Probe: | Titanium Alloy |
| Max Capacity: | More Than 500ml/Min | Intensity Of Sound: | More Than 10W/cm² |
| High Light: | Remote Control Ultrasonic Sonochemistry Device,Digital Mode Ultrasonic Homogenizer,500W Ultrasonic Sonochemistry Device |
||
20kHz 500w Ultrasonic Liquid Homogenizer machine device mixing device
Description:
Ultrasonic homogenizer uses the cavitation and other physical effects of ultrasonic waves in the liquid to achieve the homogenization effect. The physical effect means that ultrasonic waves can form effective agitation and flow in the liquid to destroy the structure of the medium and pulverize the particles in the liquid, mainly due to the collision between liquids, microphase flow and shock waves.
Specifications:
| Model | HSS20-500 | HSS20-1000-L | HSS20-1000 | HSS20-1500 | HSS20-2000 | HSS20-3000 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 500 W | 1000 W | 1000 W | 1500W | 2000W | 3000 W |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Temperature | 150 ℃ | 150 ℃ | 150 ℃ | 300℃ | 300℃ | 300 ℃ |
| Pressure | Normal | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
| Max capacity | ＞ 500ml/Min | ＞ 2 L/Min | ＞ 5L/Min | ＞ 15L/Min | ＞ 20L/Min | ＞ 100 L/Min |
| Material of probe | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Applications:
Ultrasound is the use of physical technology to produce a series of extreme extreme conditions in the medium of chemical reaction. This energy can not only stimulate or promote many chemical reactions, speed up chemical reactions, but also change the direction of chemical reactions and produce some effects. Ultrasonic homogenizer can be applied to almost all chemical reactions, such as extraction and separation, synthesis and degradation, biodiesel production, treatment of microorganisms, degradation of toxic organic pollutants, biodegradation treatment, biological cell crushing, homogenization and agglomeration, powder Homogenization of materials, emulsification of liquid materials, such as sufficient stirring and homogenization of ink materials, so that the main components of lithium batteries can be uniformly homogeneous into the liquid medium, and so on.
Industrial-grade ultrasonic homogenizers are mainly used in large-scale industrial production. Industrial-grade high-power ultrasonic sonochemical treatment equipment, with high power, high efficiency, large radiation area, suitable for large-scale industrial production, with real-time monitoring of frequency power, adjustable power, overload alarm function, the length is 930mm. The industrial-grade ultrasonic homogenizer has an energy conversion efficiency of 95%-99%.
Advantages:
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.

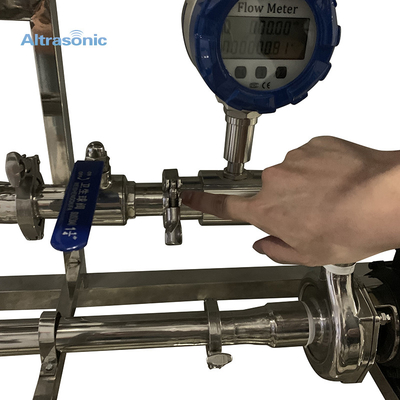

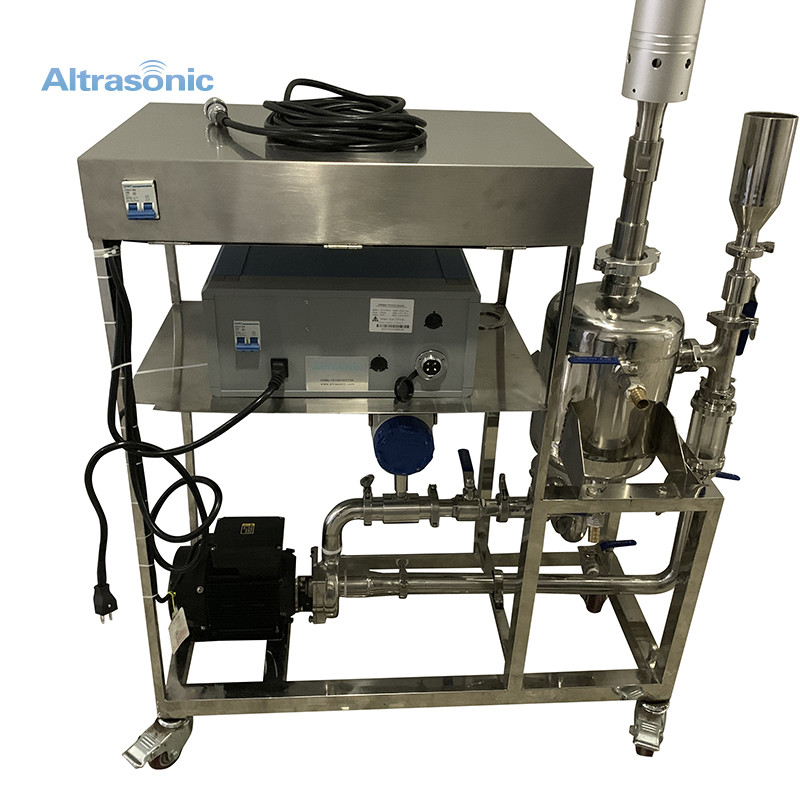

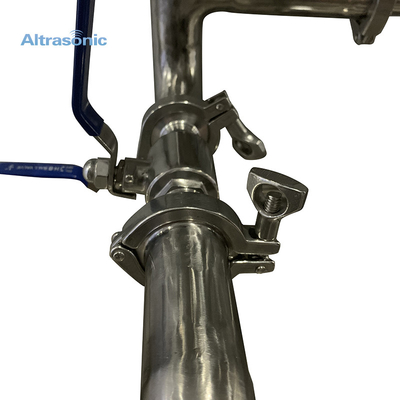

Pictures:
