500w Ultrasonic Homogenizer Digital Mode 20k Frequency

500w Ultrasonic Homogenizer Digital Mode 20k Frequency
500w Ultrasonic Homogenizer Digital Mode 20k Frequency 500w Ultrasonic Homogenizer Digital Mode 20k Frequency 500w Ultrasonic Homogenizer Digital Mode 20k Frequency

Large Image :  500w Ultrasonic Homogenizer Digital Mode 20k Frequency

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-S20-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 15 days after receiving from the payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 PCS per month

500w Ultrasonic Homogenizer Digital Mode 20k Frequency

Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 500W Weight: 16Kg
Generator: Digital Mode Control: Remote Control
Application: Extraction, Dispersing, Emulsifying Matetail Of Probe: Titanium Alloy
Max Capacity: More Than 500ml/Min Intensity Of Sound: More Than 10W/cm²
High Light:

Ultrasonic Homogenizer 500w

,

20k Ultrasonic Sonochemistry

,

Digital Ultrasonic Homogenizer

20kHz 500w Ultrasonic Liquid Homogenizer machine device mix device


Description:

Ultrasonic homogenizer uses the cavitation and other physical effects of ultrasonic waves in the liquid to achieve the homogenization effect. The physical effect means that ultrasonic waves can form effective agitation and flow in the liquid to destroy the structure of the medium and pulverize the particles in the liquid, mainly due to the collision between liquids, microphase flow and shock waves.

Specifications:



Model HSS20-500 HSS20-1000-L HSS20-1000 HSS20-1500 HSS20-2000 HSS20-3000
Frequency 20Khz 20Khz 20Khz 20Khz 20Khz 20Khz
Power 500 W 1000 W 1000 W 1500W 2000W 3000 W
Voltage 220V 220V 220V 220V 220V 220V
Temperature 150 ℃ 150 ℃ 150 ℃ 300℃ 300℃ 300 ℃
Pressure Normal Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max capacity > 500ml/Min > 2 L/Min > 5L/Min > 15L/Min > 20L/Min > 100 L/Min
Material of probe Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy


Applications:

1.  Food processing industy
2.  Reaction Acceleration – cavitation accelerates chemical and physical reactions.
3.  Fine Particle
4.  Dispersion – e.g. nanoparticle processing
5.  Disruption and Cell Lysing – will break open biological tissues and
6.  Cells to extract enzymes and DNA, prepare vaccines.
7.  This technology provides a method for
8.  Ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently
9.  Through a cylindrical reactor.
10. Homogenization – making uniform mixtures of liquids or liquid suspensions.
11. Emulsification – processing foods, pharmaceuticals, and cosmetics.
12. Dissolution – dissolving solids in solvents.
13. Degassing – removing gases from solutions without heat or vacuum.
14.  Inline pipe cleaning, removes scale or build/up without disassembly.
15.  Cylindrical 360° internally radiating chamber.

Advantages:

1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.



Pictures:

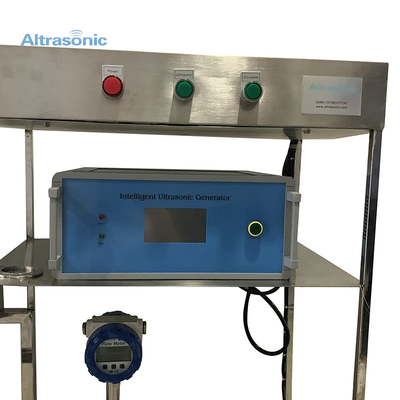

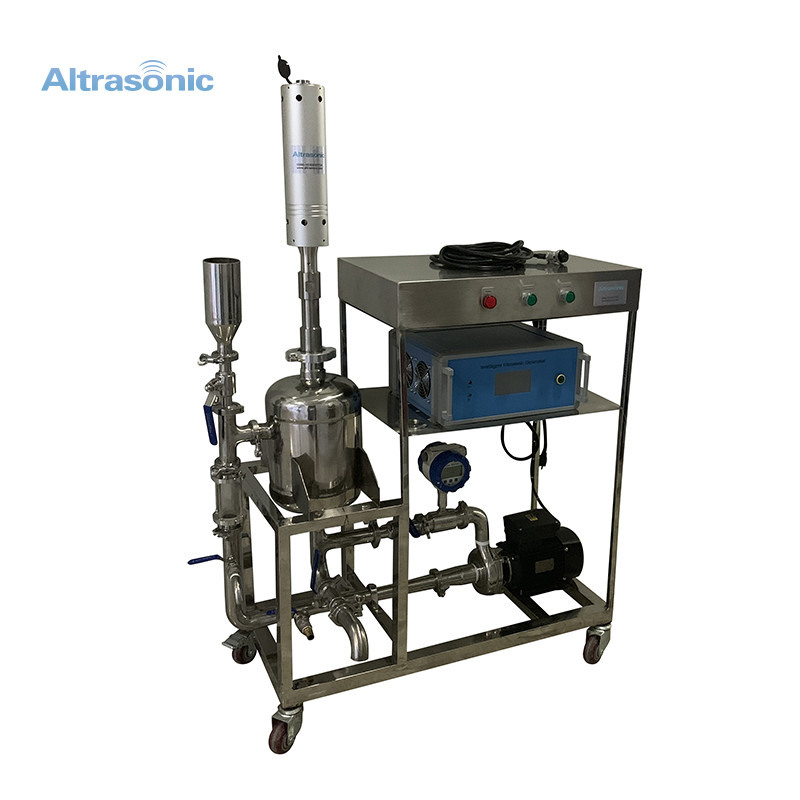

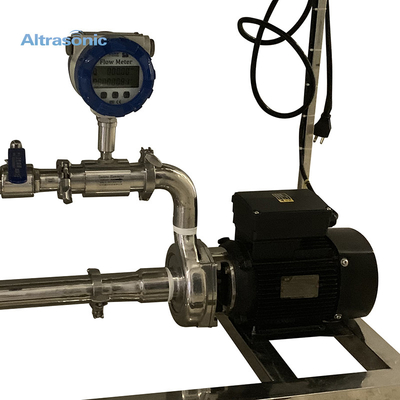

500w Ultrasonic Homogenizer Digital Mode 20k Frequency 0
