Product Details:
|
| Product Name: | 40Khz High Frequency Ultrasonic Welding Transducer Without Housing | Frequency: | 30KHz |
|---|---|---|---|
| Power: | 100W | Connect Screw: | M10 |
| Ceramic Diameter: | 30mm | Qty Of Ceramic: | 4Pcs |
| Application: | Welding | ||
| Highlight: | High Frequency Ultrasonic Welding Transducer,Ultrasonic Welding Transducer 40kHz,Ultrasonic Welding Transducer Without Housing |
||

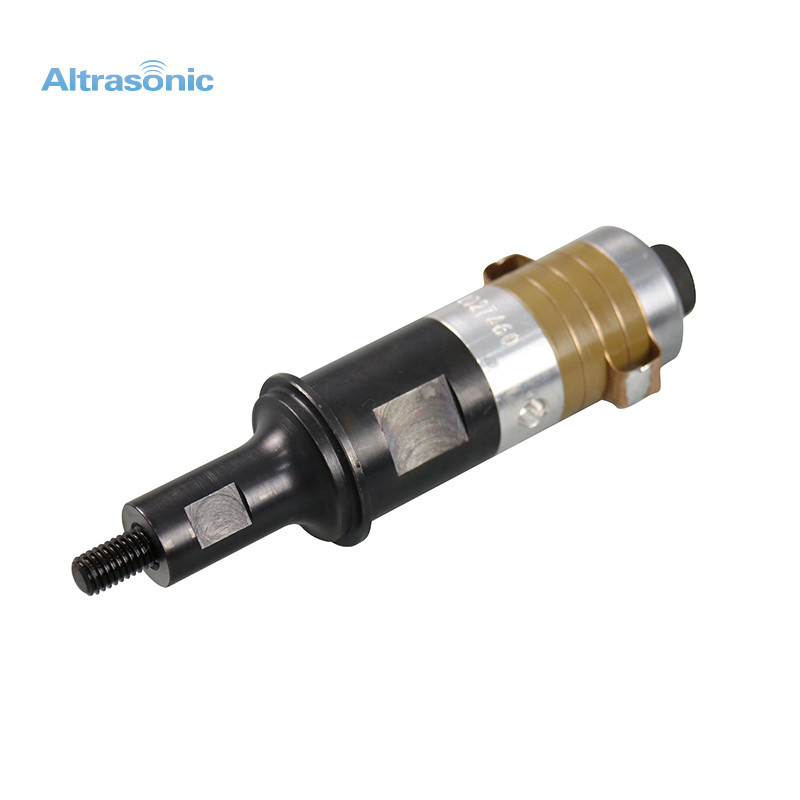

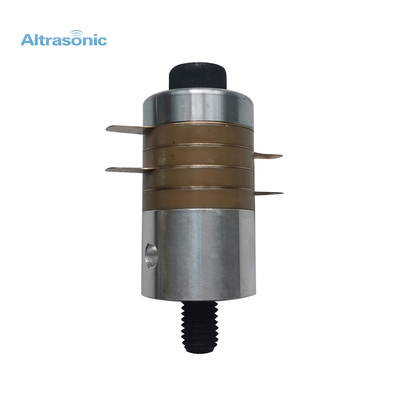

40kHz Ultrasonic Transducer Welding Without Housing High Frequency
Specification:
| Model | HS-3040-4Z |
| Frequency | 30khz |
| Output power | 1000watt |
| Joint bolt | M10 |
| Ceramic disc Diameter | 30 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 5.5-6.2nf |
| Amplitude | 4um |
| Application | Welding |
Description:
Ultrasonic welding transducer is one of main products of Altrasonic, which used the piezoelectric effort to realize transduction between electric and sound energy.
The function of the ultrasonic transducer is to convert the input electrical power into mechanical power (ie, ultrasonic waves) and transmit it out, while consuming a small part of the power itself.
Applications:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
1. Reliable performance
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
