800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing

800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing
800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing
800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing

Large Image :  800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-WS35
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 5000 Set per month
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces/month

800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing

Description
Frequency: 35khz Application: Sealing Or Welding
Components: Ultrasonic Transducer, Generator And Wheel Net Weight: 280kg
Frequency Tuning Method: Frequency Tuning Method Name: Ultrasonic Sealing Machine
Power: 800watt Certification: CE
Warranty: 1 Year Delivery Time: 15workdays
High Light:

800w Ultrasonic Lace Sewing Machine

,

35kHz Ultrasonic Lace Sewing Machine

,

Rotary Horn Ultrasonic Sewing Machine

35kHz Ultrasonic Sewing Machine Cutting Sealing Device Equipment High Efficienc Lace Sewing



Description:



Ultrasonic sewing machine, also known as ultrasonic (lace machine), ultrasonic embossing machine, ultrasonic lace sewing machine, wireless sewing machine, is an efficient sewing and embossing equipment. It is mainly used for hemming, welding, melting cutting, embossing, etc. of synthetic fiber fabrics. The processed products have the characteristics of good water tightness, high production efficiency, no need for needle and thread accessories, smooth cutting surface without burrs, and good hand feeling. Dongguan Xinyu ultrasonic lace sewing machine is widely used in clothing, toys, food, environmentally friendly non-woven bags, masks (cup masks, flat masks, three-dimensional masks, etc.) and other industries.

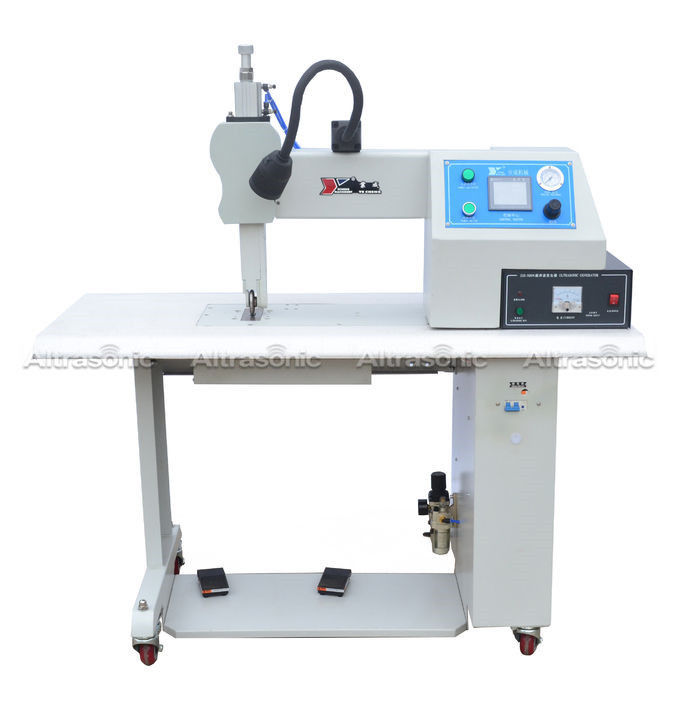

                                       800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 0





1. Air filter assembly



2. Main power switch



3. Main air leakage switch



4. Ultrasonic current



5. Ultrasonic running button



6. Ultrasonic power switch



7. Ultrasonic alarm



8. Power indicator



9. Pressure controller of press wheel



10. Control center



11. Pressure indicator of press wheel



12. Upper press wheel



13. Ultrasonic converter



14. Left and right pedals



15. Upper cylinder column



16 Working lamp



Specifications:



Model HS-WS35
Frequency 35 KHz
Power 800 W
Rotary Welding Horns Width 12 mm
Power Adjust Method File or Continuous
The Horns Surface Hardness More than HRC56
Real-time Display Working Frequency and Working Current
Synchronizing Wheel Specifications 46XL Trapezoidal Tooth,Width16mm
Synchronizing Belt Matched The Length is not more than730mm,the Width 12mm
Allowable Rotation Speed 100 r/min.
Install Bolt M8, 4 pcs




Features:



Ultrasonic no sewing machine can stitch the fabric made of nylon, PVC, PU, TPU and TC. The high frequency can stick the fabric instead of needle and thread when ultrasonic machine works. It is a marked feature of this type machine that welding time is shorter and there is smokeless and no irritant taster especially for plastic materials.

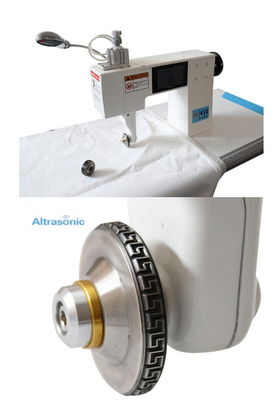

Detailed image:



800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 1800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 2



Main advantages:



1. Efficient and stable

2. Simple operation.

3. The use of titanium material has a long service life.

4. Digital ultrasonic power supply, automatic tracking frequency, with real-time monitoring LCD screen.

5. Easily integrated into the customer's current processing line.



800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 3

800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 4

800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 5

800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 6800w Ultrasonic Lace Sewing Machine 35kHz For Cutting Sealing 7
