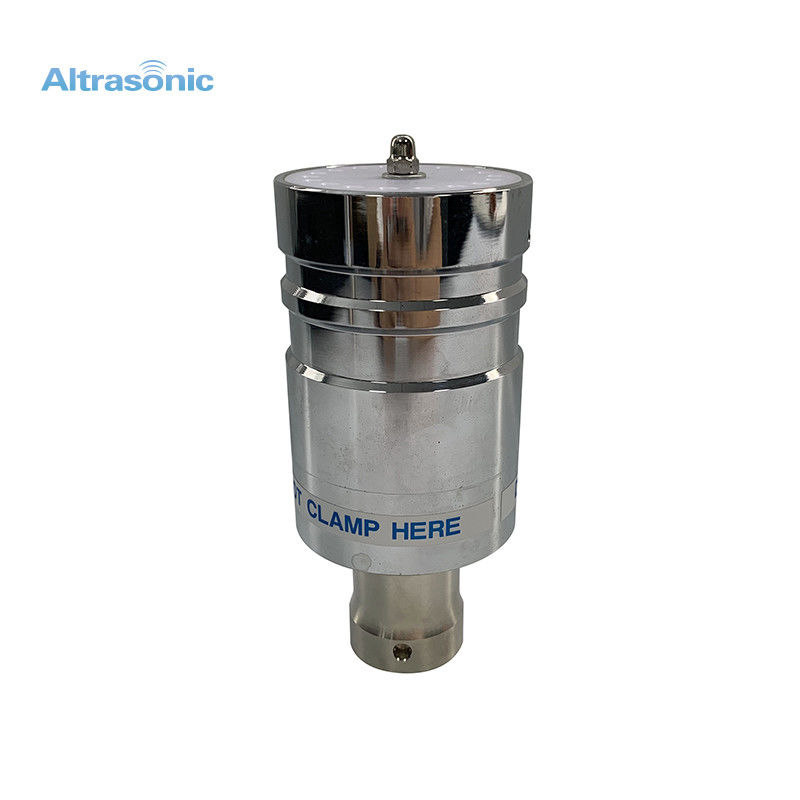

20Khz Ultrasonic Converter For Replacement Branson 803 OEM Available

Large Image : 20Khz Ultrasonic Converter For Replacement Branson 803 OEM Available

Product Details:

Place of Origin:	CHINA
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-B803

Payment & Shipping Terms:

Minimum Order Quantity:	2 PCS
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000 units per month

Contact Now

20Khz Ultrasonic Converter For Replacement Branson 803 OEM Available

Description

Product Name:	Ultrasonic Converter	Frequency:	20Khz
Ceramic Diameter:	50 Mm	Capacitance:	11.5 - 12.5nf
Power:	1500W	Application:	Plastic Welding Machine
Ceramic Disc:	4pcs Or 6pcs	Material:	Titanium, Aluminum Materials Optional
Protective Outer Cover:	Aluminum And Stainless Steel Optional	Delivery Time:	7 Working Days
High Light:	20K Ultrasonic Converter , Replacement Branson 803 Ultrasonic Converter , OEM Ultrasonic Converter

High Quality 20Khz Ultrasonic Converter For Replacement Branson 803 OEM Available

Products Specifications:

Model	HS-B803
Frequency	20 kHz
Output power	1500 watt
Joint bolt	1/2-20unf
Ceramic disc Diameter	50 mm
Quantity of Ceramic discs	4 pcs or 6pcs
Capacitance	11.5 - 12.5 nf
Amplitude	20 um
Application	welding machine

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Products Advantages:

1. High efficiency, we will provide fast reply and delivery time.

2. Most reasonable prices.
3. 4 piezo disk design for maximum output amplitude.
4. Stable design to protect sensitive ultrasonic components.
5. Perfect resonance image due to high-quality materials and select material pairings.

Best Service:

1. OEM Available - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Provide Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples or products details, then we can give you best price and quality.

4. 1 Year Warranty.

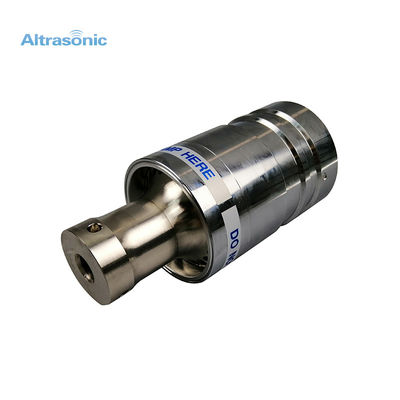

Product Showing:
