Product Details:
|
| Product Name: | 40Khz Ultrasonic Welding Transducer | Frequency: | 40KHz |
|---|---|---|---|
| Power: | 100W | Connect Screw: | M10 |
| Ceramic Diameter: | 30mm | Qty Of Ceramic: | 4Pcs |
| Application: | Welding | Origin: | China |
| High Light: | 100W High Frequency Ultrasonic Transducer,40Khz High Frequency Ultrasonic Transducer,M10 Screw Ultrasonic Welding Transducer |
||

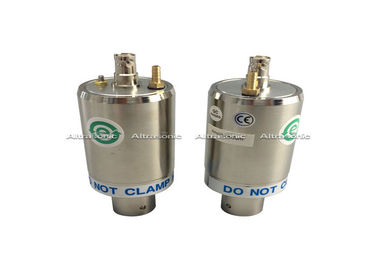

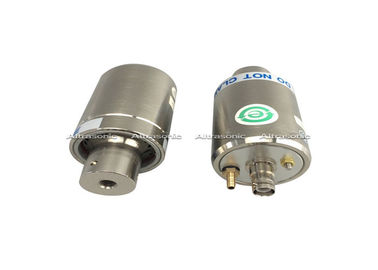

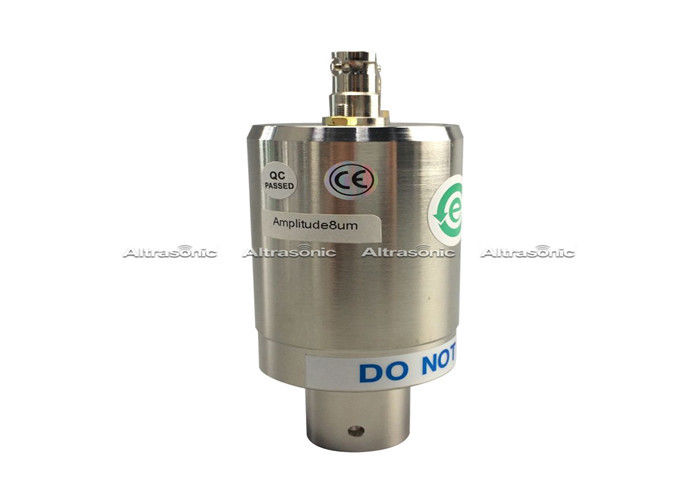

Welding Without Housing Device 40 Khz High Frequency Ultrasonic Transducer
Specific Parameters:
| Model | HS-3040-4Z |
| Frequency | 30khz |
| Output power | 1000watt |
| Joint bolt | M10 |
| Ceramic disc Diameter | 30 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 5.5-6.2nf |
| Amplitude | 4um |
| Application | Welding |
Description:
Ultrasonic welding transducer is one of Altra's main products, which uses the piezoelectric effect to realize the conversion between electrical energy and sound energy.
Ultrasonic transducers and ultrasonic transducers are the same thing. One ultrasound OEM, Dukane Corporation, uses the term "transducer". All other ultrasonic OEM manufacturers such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to them as transducers or converters.
Either a transducer or a sensor does the same thing...converts electrical energy into mechanical motion...so we introduce an electrical charge into the ceramic surface at the desired frequency, which in turn gives us motion or vibration at the working end of the transducer.
The transducer is connected to a booster that increases, decreases or simply transfers the amount of movement from the face of the transducer to what we call a horn or Sonotrode.
Applications:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
1. The parameters are stable
2. Easy match with ultrasonic power supply
3. High-quality raw materials
4. Accept OEM cooperation
