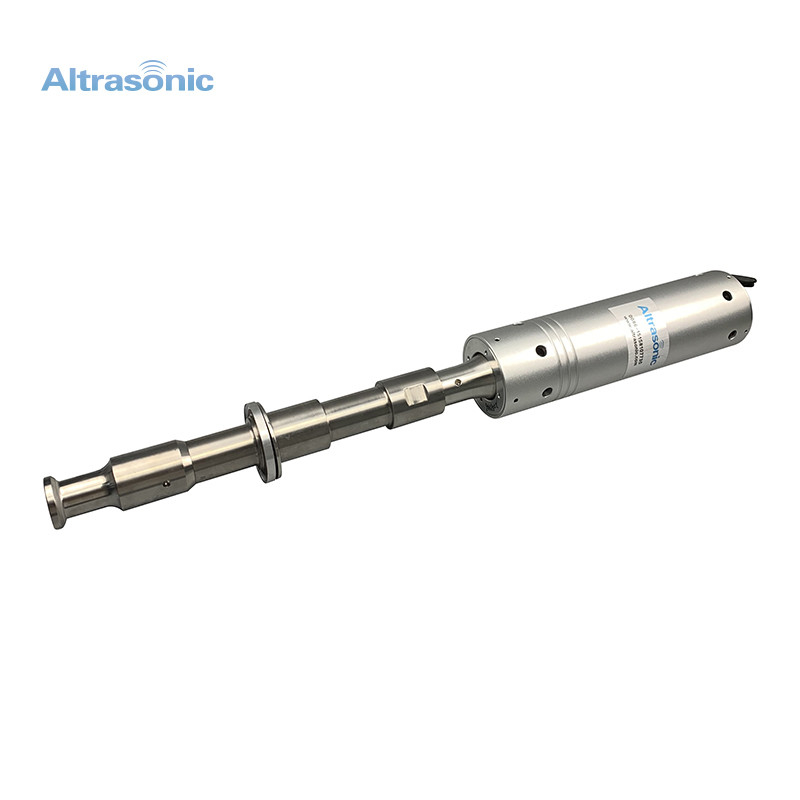

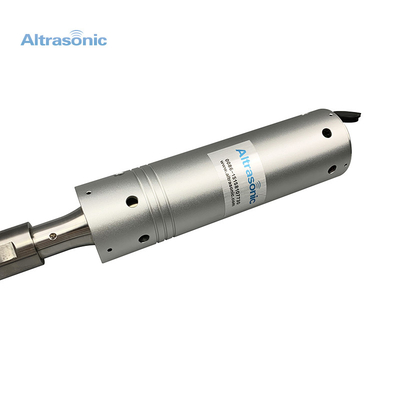

Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy

Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy
Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy

Large Image :  Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-S20-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 15 days after receiving from the payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 PCS per month

Digital Mode 3000w Ultrasonic Sonochemistry Titanium Alloy

Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 3000W Generator: Digital Mode
Control: Remote Control Application: Extraction, Dispersing, Emulsifying
Matetail Of Probe: Titanium Alloy Max Capacity: More Than 500ml/Min
Intensity Of Sound: More Than 10W/cm²
High Light:

Ultrasonic Sonochemistry Titanium Alloy

,

3000w Ultrasonic Sonochemistry

,

Digital Mode Ultrasonic Sonochemistry

Ultrasonic 20kHz 3000w Sonochemistry Ultrasonic Sonochemistry Titanium Alloy Reactor Sewage Treatment Horns



Sonochemistry Ultrasonic Sonochemistry Titanium Alloy Reactor Sewage Treatment Horns


Introduction:

As the main transportation means at sea, ships have played a huge role in international trade. However, if the microorganisms in the ship's ballast water are discharged locally without treatment, they will pollute the local ecological environment and seriously damage biodiversity and even endanger human health. There are more than 20 kinds, but none of these methods can meet the five standards of safety, practicality, economy, efficiency and environmental tolerance proposed by IMO. The ultrasonic cavitation effect can kill all kinds of marine life and protect the ocean. Safety and life of the facility. Ultrasonic Ballast Water Treatment

Marine fouling organisms can be divided into the following three categories

  • Soft growths such as sponges;
  • Bacteria and single-cell organic matter, such as various types of bacteria and algae;
  • Hard marine animals, such as barnacles, bivalve molluscs, etc.

The most harmful species are mainly hard-fouling organisms

  • Will damage the surface of the metal structure, which will cause local corrosion;
  • Larger fouling organisms can block water supply and drainage pipes, heat exchangers, etc., which seriously affects the safety of marine facilities and their service life.



Description:

Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute
leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Specifications:



Model HSS20-500 HSS20-1000-L HSS20-1000 HSS20-1500 HSS20-2000 HSS20-3000
Frequency 20Khz 20Khz 20Khz 20Khz 20Khz 20Khz
Power 500 W 1000 W 1000 W 1500W 2000W 3000 W
Voltage 220V 220V 220V 220V 220V 220V
Temperature 150 ℃ 150 ℃ 150 ℃ 300℃ 300℃ 300 ℃
Pressure Normal Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max capacity > 500ml/Min > 2 L/Min > 5L/Min > 15L/Min > 20L/Min > 100 L/Min
Material of probe Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy


Applications:

1.  Food processing
2.  Reaction Acceleration – cavitation accelerates chemical and physical reactions.
3.  Fine Particle
4.  Dispersion – e.g. nanoparticle processing
5.  Disruption and Cell Lysing – will break open biological tissues and
6.  Cells to extract enzymes and DNA, prepare vaccines.
7.  This technology provides a method for
8.  Ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently
9.  Through a cylindrical reactor.
10. Homogenization – making uniform mixtures of liquids or liquid suspensions.
11. Emulsification – processing foods, pharmaceuticals, and cosmetics.
12. Dissolution – dissolving solids in solvents.
13. Degassing – removing gases from solutions without heat or vacuum.
14.  Inline pipe cleaning, removes scale or build/up without disassembly.
15.  Cylindrical 360° internally radiating chamber.

Advantages:

1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection

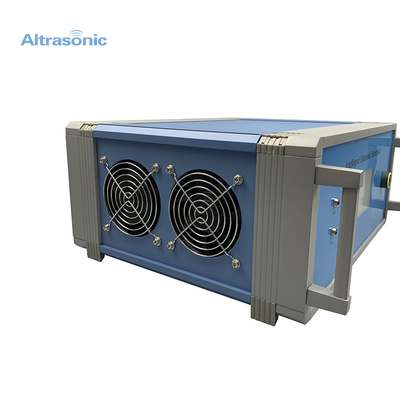

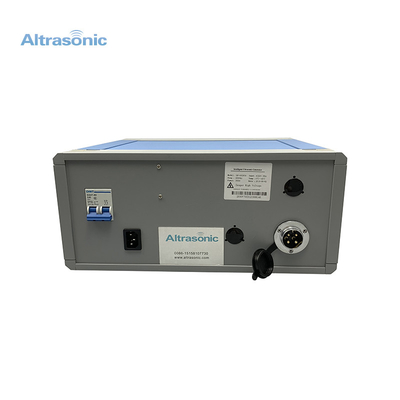

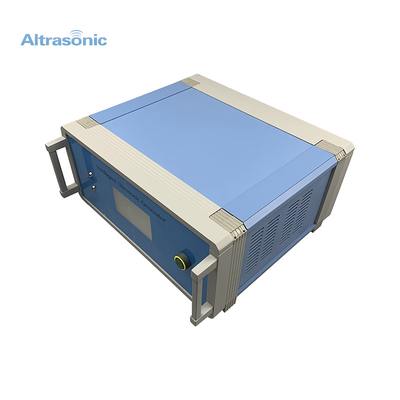

3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.



Tag: ultrasound sonochemistry,sonochemistry equipment
